HP SERIES-Grey PGI 2-5212

See comparative

Code: 2-5212

Polyamix and grey rubber wheels. Especially suitable for supporting loads of up to 40 kg. Our range of HP-PGI series wheels is recommended for medium load capacity sectors. Suitable for use in: displays, furniture, stools, catering, hospitals, utility carts, clinical and sanitary furniture, IV stands, cleaning trolleys, and IV pole holders.

PGI GREY: Does not scratch or stain the floor. Suitable for all types of surfaces.

Components

Brackets

Made of reinforced polyamide Casing with flushed recess for the rounded ergonomic brake Manufactured to European Standard EN 12528

Wheel

Grey rubber tyre on polypropylene centre

Temperature range: -20º ÷ +60º

Rolling Resistence Good

Noise during the march Very Good

Floor Protection Very Good

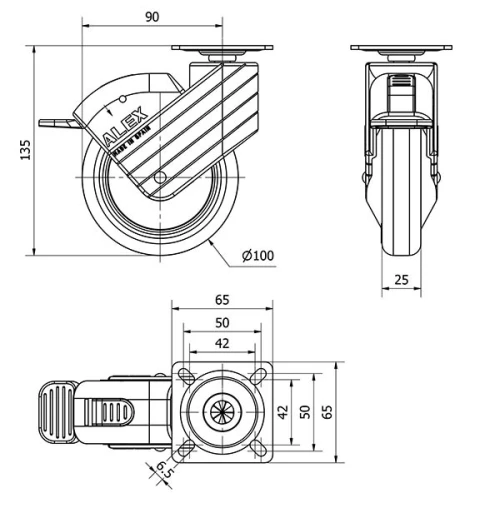

Technical Data 2-5212

EAN:

8422202252124

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake

Material:

Rubber

Low Temperature (ºC):

Maximum Temperature (ºC):

Hardness of tread:

90º SHORE A

Bearing:

Plain

Color:

Gray

Diameter (mm):

100

Width of tyre (mm):

Plate dimensions (mm):

65x65

Distance between holes (mm):

50x50

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

135

Load:

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF
