HD SERIES-HD 2-4987

See comparative

Code: 2-4987

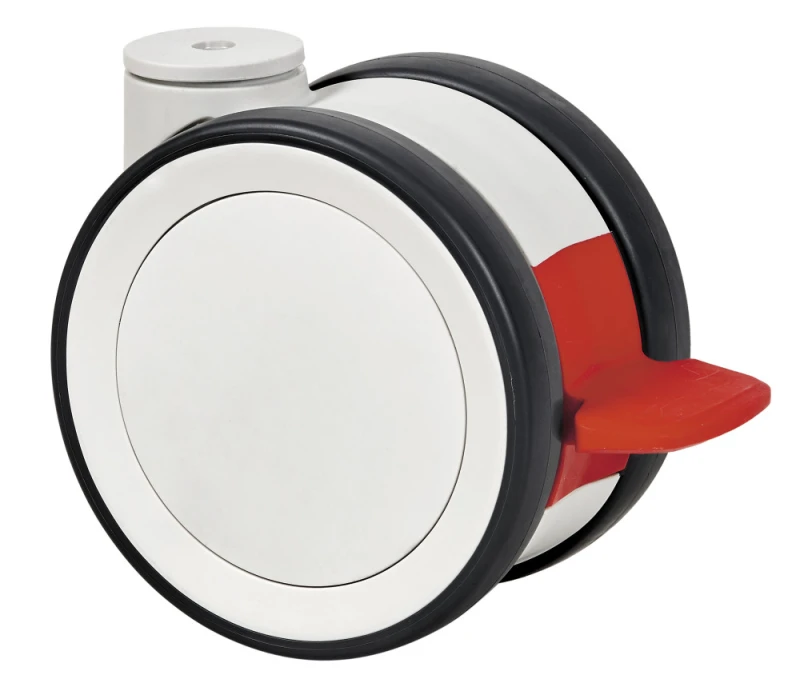

Our HD medium duty castors are recommended for the healthcare sector, hospitals, stretchers, operating rooms, beds.

Twin polyurethane wheel. Housing made of polyamide with reinforced fibreglass. Soporte pivotante de fácil encaje. Double ball bearing swivel head.

Especially designed to support loads up to 125 kg.

HD: Noiseless. Great floor protection . Easy rolling.

Components

Brackets

Made of reinforced fibreglass. Swivelling head with perfect fitting. Grey colour (RAL 7035) finish. Available in grey and black colours upon request. Manufactured according to European Standards EN 12530.

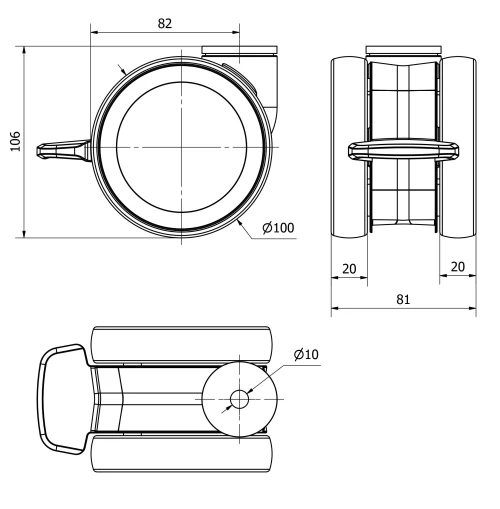

Technical Data 2-4987

EAN:

8422202249872

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Wheel Brake And Fork

Material:

Polyurethane

Low Temperature (ºC):

-25

Maximum Temperature (ºC):

Hardness of tread:

95º SHORE A

Bearing:

Ball

Color:

Gray

Diameter (mm):

100

Width of tyre (mm):

20x2

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

106

Load:

125

Unit Weight of the wheel (kg):

0,574

Volume (cm³):

1412
