HD SERIES-HD 2-4986
EAN 8422202249865
Our HD medium duty castors are recommended for the healthcare sector, hospitals, stretchers, operating rooms, beds.
Twin polyurethane wheel. Housing made of polyamide with reinforced fibreglass. Soporte pivotante de fácil encaje. Double ball bearing swivel head.
Especially designed to support loads up to 125 kg.
HD: Noiseless. Great floor protection . Easy rolling.

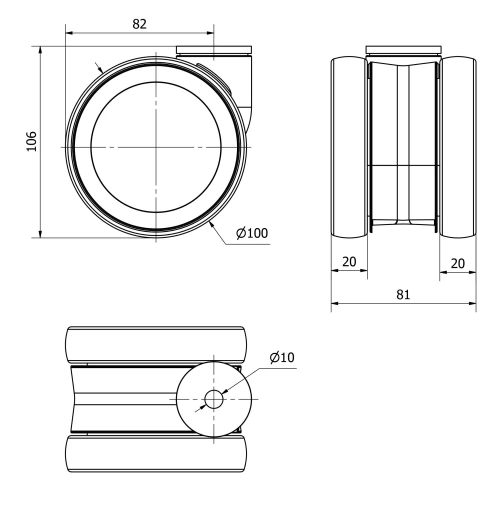

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Bolt hole |
Braking System | Without Brake |
Material | Polyurethane |
Low Temperature (ºC) | -25 |
Maximum Temperature (ºC) | 80 |
Hardness of tread | 95º SHORE A |
Bearing | Ball |
Color | Gray |
Diameter (mm) | 100 |
Width of tyre (mm) | 20x2 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 82 |
Overall height (mm) | 106 |
Load | 125 |
Unit Weight of the wheel (kg) | 0.557 |
Volume (cm3) | 1807 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of reinforced fibreglass. Swivelling head with perfect fitting. Grey colour (RAL 7035) finish. Available in grey and black colours upon request. Manufactured according to European Standards EN 12530.
