HDL SERIES-HD 2-0097

Code: 2-0097

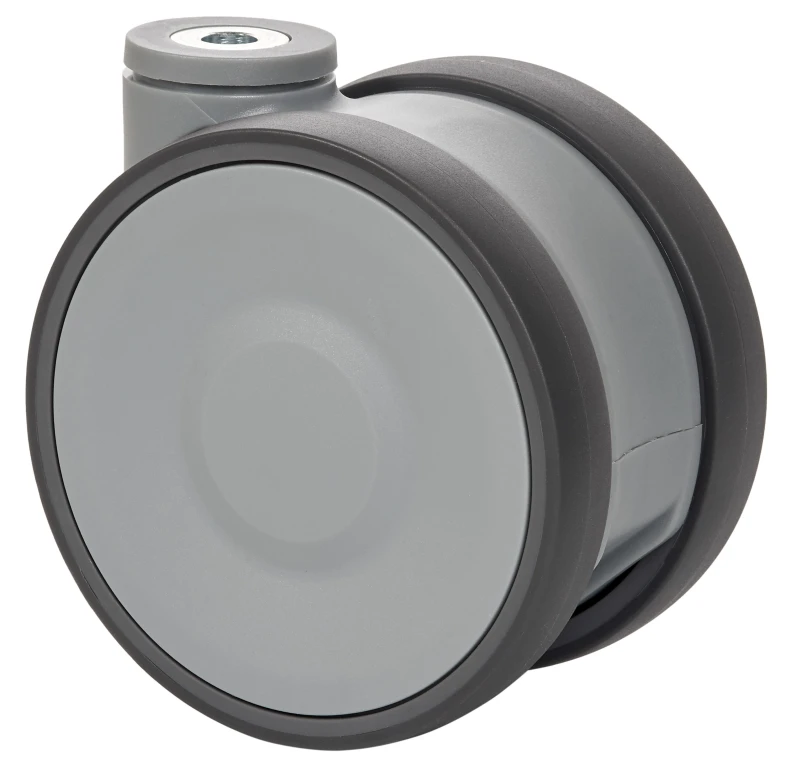

Double polyurethane wheel. Housing made of fiberglass-reinforced material in gray color. Pivoting support with easy snap-fit design. Swivel head with double precision ball bearings.

Specifically designed to support loads up to 125 kg.

Used in operating rooms, surgical theaters, beds, and other hospital applications.

HDL: Silent. Provides excellent floor protection. Easy to move.

Components

Brackets

Made of reinforced fibreglass. Swivelling head with perfect fitting. Grey colour (RAL 7035) finish. Available in grey and black colours upon request. Manufactured according to European Standards EN 12530.

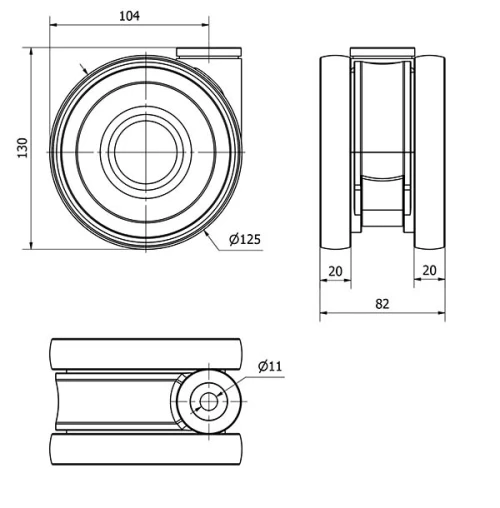

Technical Data 2-0097

EAN:

8422202200972

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Without Brake

Material:

Polyurethane

Low Temperature (ºC):

Maximum Temperature (ºC):

Hardness of tread:

95º SHORE A

Bearing:

Ball

Color:

Gray

Diameter (mm):

125

Width of tyre (mm):

20x2

Plate hole diameter (mm):

Axle Hole:

Offset (mm):

104

Overall height (mm):

130

Load:

125

Unit Weight of the wheel (kg):

0,69

Volume (cm³):

1,327
