HDL SERIES-HD 2-0100

See comparative

Code: 2-0100

Double polyurethane wheel. Housing made of fiberglass-reinforced material in gray color. Pivoting support with easy snap-fit design. Swivel head with double precision ball bearings.

Specifically designed to support loads up to 125 kg.

Used in operating rooms, surgical theaters, beds, and other hospital applications.

HDL: Silent. Provides excellent floor protection. Easy to move.

Components

Brackets

Made of reinforced fibreglass. Swivelling head with perfect fitting. Grey colour (RAL 7035) finish. Available in grey and black colours upon request. Manufactured according to European Standards EN 12530.

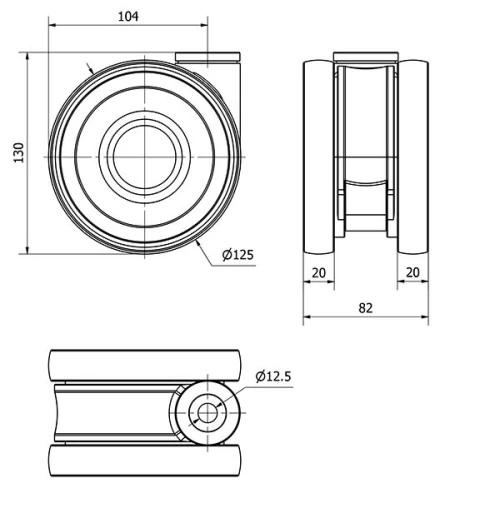

Technical Data 2-0100

EAN:

8422202201009

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Without Brake

Material:

Polyurethane

Low Temperature (ºC):

Maximum Temperature (ºC):

Hardness of tread:

95º SHORE A

Bearing:

Ball

Color:

Gray

Diameter (mm):

125

Width of tyre (mm):

20x2

Plate hole diameter (mm):

Offset (mm):

104

Overall height (mm):

130

Load:

125

Unit Weight of the wheel (kg):

0,68

Volume (cm³):

1,327

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF
