HC SERIES-PGAIB 2-4637
EAN 8422202246376
Our HC medium duty castors are recommended for medical equipment, institutional applications and for hotels and restaurants. Grey thermoplastic injected rubber wheel. Housing made of high quality polyamide reinforced with fibreglass. Upper swivel head with hardened double ball bearing (swivel plate and bolt hole) and embedded ball bearing (threaded pin). Especially designed to support loads up to 100 kg.
Used in healthcare equipment, operating rooms, beds, hospital furnitures, catering industry, kitchens.
PGAIB: Noiseless, vibrations absorption. Non-marking. Easy rolling.

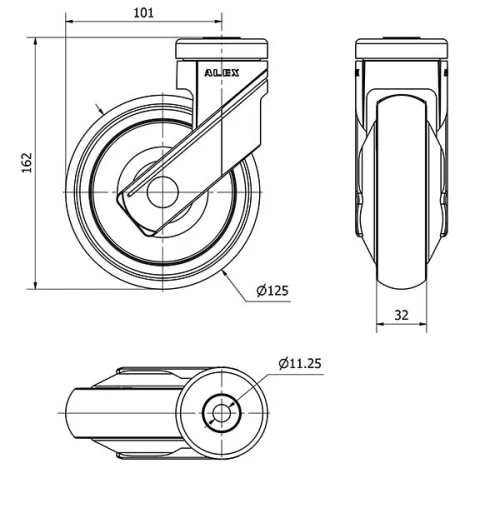

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Bolt hole |
Braking System | Without Brake |
Material | Rubber |
Low Temperature (ºC) | -20 |
Maximum Temperature (ºC) | 60 |
Bearing | Ball |
Diameter (mm) | 125 |
Width of tyre (mm) | 32 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 101 |
Overall height (mm) | 162 |
Load | 100 |
Unit Weight of the wheel (kg) | 0.515 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of high quality polyamide reinforced with fibreglass. Upper swivel head with hardened double ball bearing (swivel plate and bolt hole). Embedded ball bearing (threaded pin). Manufactured according to European Standards EN 12530.
