HC SERIES-PGAIB 2-4640

Code: 2-4640

Our HC medium duty castors are recommended for medical equipment, institutional applications and for hotels and restaurants. Grey thermoplastic injected rubber wheel. Housing made of high quality polyamide reinforced with fibreglass. Upper swivel head with hardened double ball bearing (swivel plate and bolt hole) and embedded ball bearing (threaded pin). Especially designed to support loads up to 100 kg.

Used in healthcare equipment, operating rooms, beds, hospital furnitures, catering industry, kitchens.

PGAIB: Noiseless, vibrations absorption. Non-marking. Easy rolling.

Components

Brackets

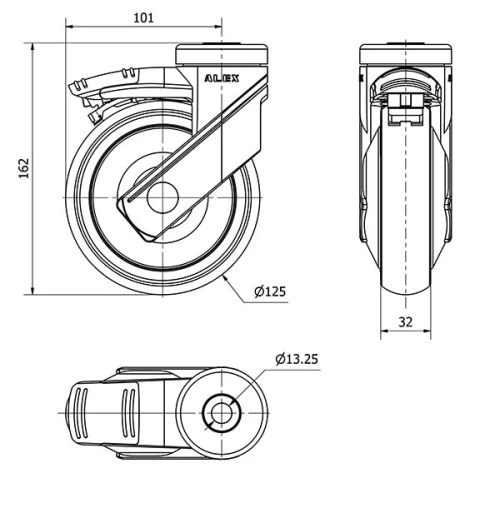

Technical Data 2-4640

EAN:

8422202246406

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Wheel Brake And Fork

Material:

Rubber

Low Temperature (ºC):

-20

Maximum Temperature (ºC):

Bearing:

Ball

Diameter (mm):

125

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

101

Overall height (mm):

162

Load:

100

Unit Weight of the wheel (kg):

0,555
