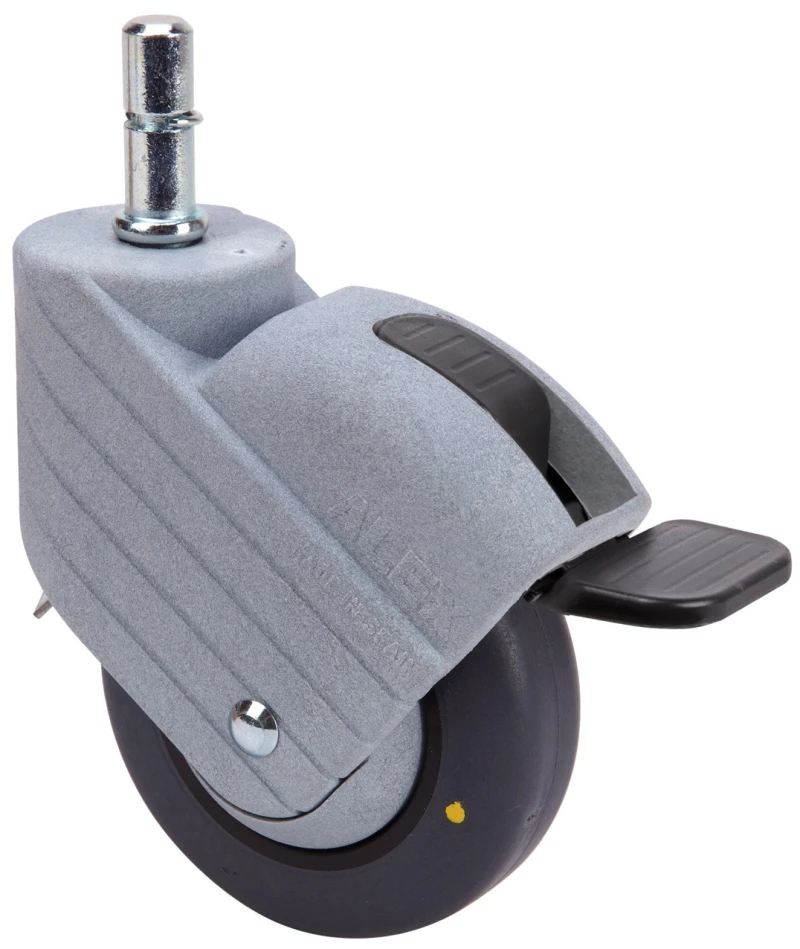

HP SERIES PGC 2-3571

See comparative
Categories
Share
Technical Guide
On-line Catalogue
On-line Catalogue
ES Catalogue
INT Catalogue
Code: 2-3571

Components

Brackets

Made of reinforced polyamide Casing with flushed recess for the rounded ergonomic brake Manufactured to European Standard EN 12528

Wheel

Antistatic grey polyurethane tyre on polypropylene centre.Shore A 95º
Temperature range: -25º ÷ +80º
Rolling Resistence Very Good
Noise during the march Good
Floor Protection Very Good

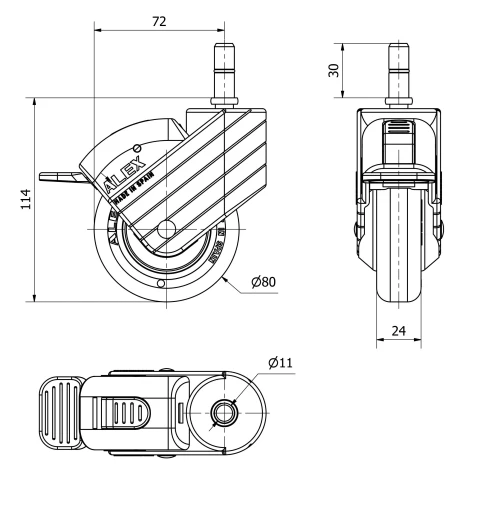

Technical Data 2-3571

EAN:
8422202235714
Housing Type:
Swivel
Fitting Type:
Stem
Braking System:
Wheel Brake And Fork
Hardness of tread:
55º-60º SHORE D
Bearing:
Plain
Diameter (mm):
80
Width of tyre (mm):
24
Width x height of stem:
11X30
Offset (mm):
72
Overall height (mm):
114
Load:
40
Unit Weight of the wheel (kg):
0,225
Volume (cm3):
629
Technical Data 2-3571

Private area

Regístrate
Download in 3D formats
Catia
Iges
Inventor
Parasolid
Proengineer
Step AP203
Download in 2D formats
DWG
Download PDF
