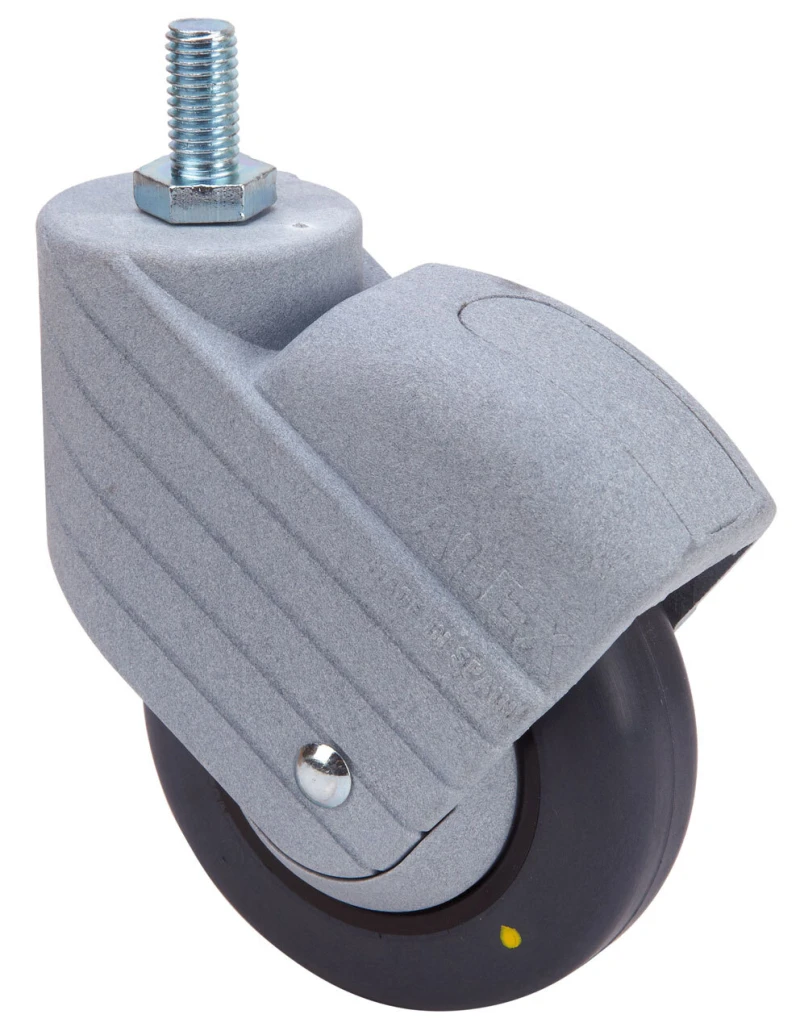

HP SERIES PGC 2-3575
EAN 8422202235752
Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Threaded Stem |
Braking System | Without Brake |
Hardness of tread | 55º-60º SHORE D |
Bearing | Plain |
Diameter (mm) | 100 |
Width of tyre (mm) | 25 |
Width x height of stem | 10x20 |
Offset (mm) | 90 |
Overall height (mm) | 132 |
Load | 40 |
Unit Weight of the wheel (kg) | 0.355 |
Volume (cm3) | 790 |
Private area
Price --€
Downloads
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Brackets
Made of reinforced polyamide Casing with flushed recess for the rounded ergonomic brake Manufactured to European Standard EN 12528
Wheel
Antistatic grey polyurethane tyre on polypropylene centre.Shore A 95º
Temperature range: -25º ÷ +80º
-
Rolling Resistence Very Good
-
Noise during the march Good
-
Floor Protection Very Good
