Which castors do you need?
WL SERIES-RIFN 4-0900
EAN 8422202409009
Black pneumatic castors, with polypropylene centre and plain wheel bearing (RIFN) or roller wheel bearing (RIFR), especially indicated to support high-loads up to 100 Kg.
It is used in: delivery carts, transporting bottles, drums, trailers, warehouse carts, platforms and transport carts.
RIFN-RIFR: puncture-proof, noiseless, proper shock absorption.

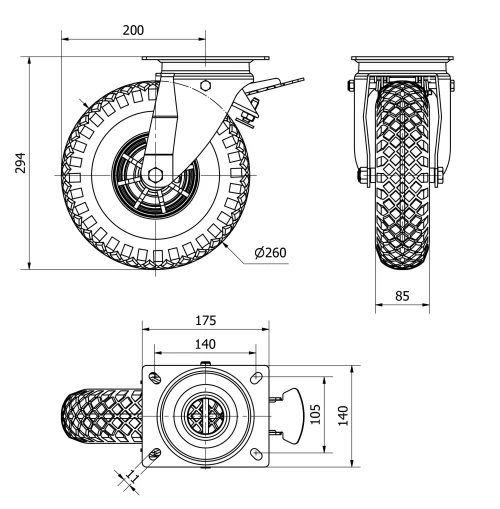

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Wheel Brake |
Bearing | Plain |
Diameter (mm) | 260 |
Width of tyre (mm) | 85 |
Plate dimensions (mm) | 175x140 |
Distance between holes (mm) | 140x105 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 200 |
Overall height (mm) | 294 |
Load | 100 |
Unit Weight of the wheel (kg) | 3.68 |
