WL SERIES-RIP 4-0903

See comparative

Code: 4-0903

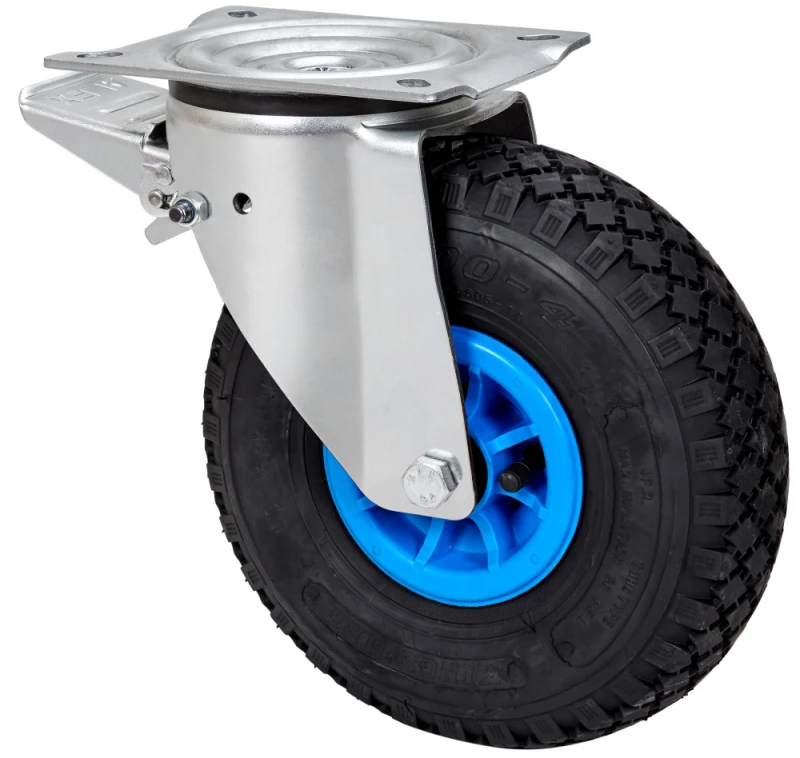

Black castors with polypropylene rim. Four-ply pneumatic tyre, especially indicated to support high-loads up to 175 Kg.

It is used in: delivery carts, transporting bottles, drums, trailers, warehouse carts, platforms and transport carts.

RIP: pneumatic, noiseless, proper shock absorption.

Components

Brackets

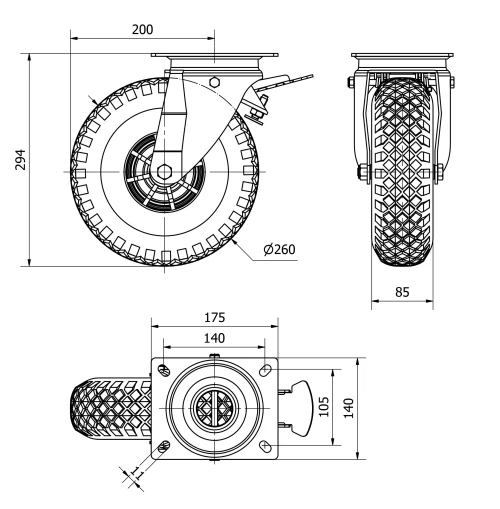

Technical Data 4-0903

EAN:

8422202409030

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake

Bearing:

Plain

Diameter (mm):

260

Width of tyre (mm):

Plate dimensions (mm):

175x140

Distance between holes (mm):

140x105

Plate hole diameter (mm):

Offset (mm):

200

Overall height (mm):

294

Load:

175

Unit Weight of the wheel (kg):

4,492
