Which castors do you need?
ZV SERIES-RIL 4-1262
EAN 8422202412627

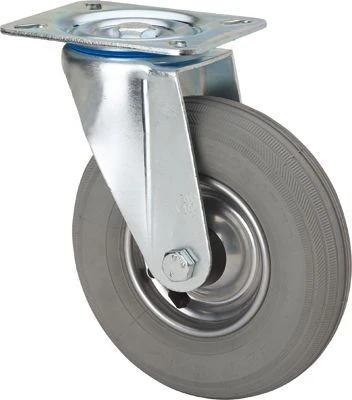

Grey castors with metallic rim and pneumatic tyre, especially indicated to support high-loads up to 75 Kg.
It is used in: transport carts, tool transport.
RIL: noiseless, does not leave marks on floor.

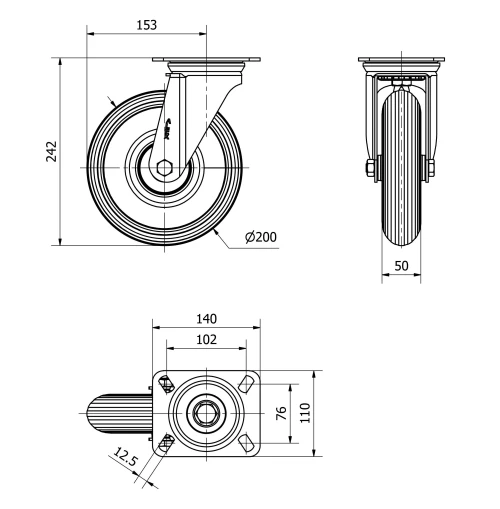

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Pneumatic Wheel |
Bearing | Roller |
Diameter (mm) | 200 |
Width of tyre (mm) | 50 |
Plate dimensions (mm) | 140x110 |
Distance between holes (mm) | 110x84/98x66 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 153 |
Overall height (mm) | 242 |
Load | 75 |
Unit Weight of the wheel (kg) | 2.265 |
Volume (cm3) | 5936 |
Private area
Price --€
Downloads
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Brackets
Made of pressed steel up to 4 mm Puncture-proof. Silent. Do not leave marks. Manufactured to European standards EN 12532.
Wheel

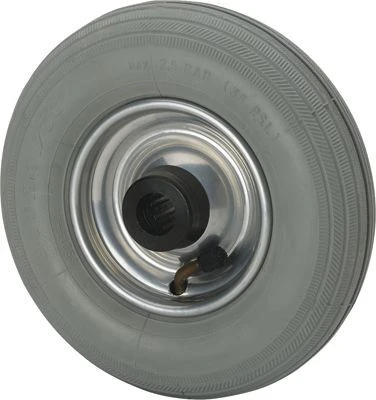

Grey pneumatic tyre on pressed steel rim
-
Rolling Resistence Very Good
-
Noise during the march Excelent
-
Floor Protection Excelent
