ZV SERIES-RIL 4-1263

See comparative

Code: 4-1263

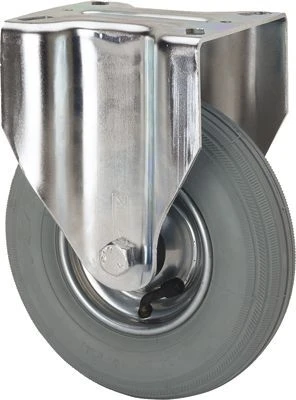

Grey castors with metallic rim and pneumatic tyre, especially indicated to support high-loads up to 75 Kg.

It is used in: transport carts, tool transport.

RIL: noiseless, does not leave marks on floor.

Components

Brackets

Made of pressed steel up to 4 mm Puncture-proof. Silent. Do not leave marks. Manufactured to European standards EN 12532.

Wheel

Grey pneumatic tyre on pressed steel rim

Rolling Resistence Very Good

Noise during the march Excelent

Floor Protection Excelent

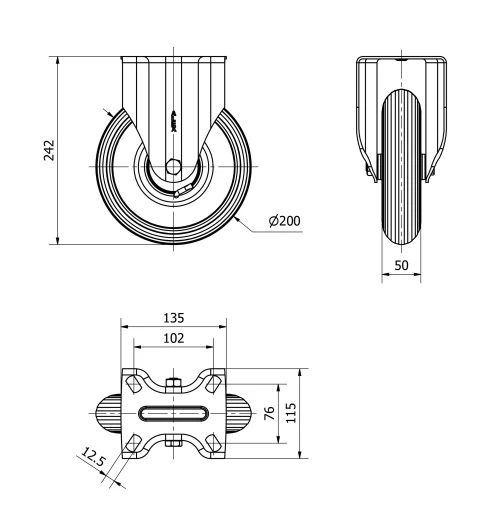

Technical Data 4-1263

EAN:

8422202412634

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Pneumatic Wheel

Bearing:

Roller

Diameter (mm):

200

Width of tyre (mm):

Plate dimensions (mm):

136x116

Distance between holes (mm):

110x84/98x66

Plate hole diameter (mm):

Overall height (mm):

242

Load:

Unit Weight of the wheel (kg):

1,9

Volume (cm³):

3818

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products

4-1262

2-3639
