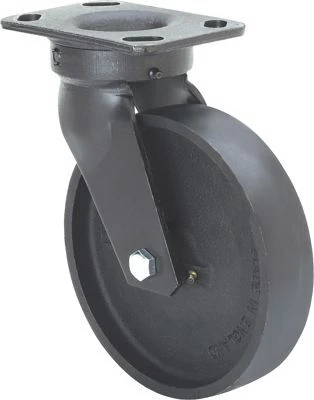

GT SERIES-TA 4-1133
EAN 8422202411330
Steel castors, especially indicated to support high-loads up to 1.270 Kg.
It is used in: logistics transport tools, furnaces standing high temperatures (-40º to +300º) and heavy machinery for the construction sector.
Mainly used in the railway sector and automobile factories.
TA: very tough work conditions where the existence of cutting objects, chemical products or high temperatures would destroy other kind of castors. Heavy duty.
For temperatures above 200ºC, load (Kg) should be reduced by 40%.

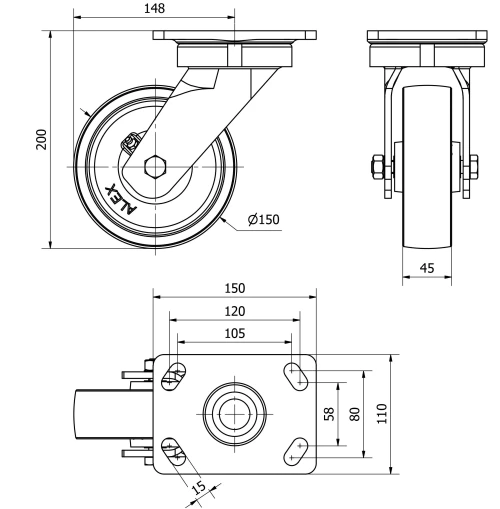

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Cast Iron |
Bearing | Plain |
Diameter (mm) | 150 |
Width of tyre (mm) | 45 |
Plate dimensions (mm) | 150x110 |
Distance between holes (mm) | 105x80 |
Plate hole diameter (mm) | 12 |
Offset (mm) | 148 |
Overall height (mm) | 200 |
Load | 1090 |
Unit Weight of the wheel (kg) | 5.94 |
Volume (cm3) | 4906 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Forged kingpinless castor made of steel up to 8 mm.Painted black.Swivel head contains hard steel balls designed to withstand radial and lateral efforts.Totally sealed swivel head with grease nipple.Manufactured to European standard EN 12532/12533.
-
Rolling Resistence Excelent
-
Noise during the march Sufficient
-
Floor Protection Sufficient
