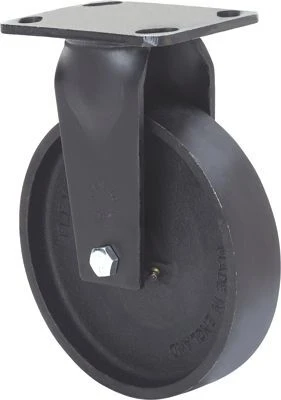

GT SERIES-TA 4-0381

Code: 4-0381

Steel castors, especially indicated to support high-loads up to 1.270 Kg.

It is used in: logistics transport tools, furnaces standing high temperatures (-40º to +300º) and heavy machinery for the construction sector.

Mainly used in the railway sector and automobile factories.

TA: very tough work conditions where the existence of cutting objects, chemical products or high temperatures would destroy other kind of castors. Heavy duty.

For temperatures above 200ºC, load (Kg) should be reduced by 40%.

Components

Brackets

Forged kingpinless castor made of steel up to 8 mm.Painted black.Swivel head contains hard steel balls designed to withstand radial and lateral efforts.Totally sealed swivel head with grease nipple.Manufactured to European standard EN 12532/12533.

Wheel

Cast iron wheel

Temperature range: -40º ÷ +300º

Rolling Resistence Excelent

Noise during the march Sufficient

Floor Protection Sufficient

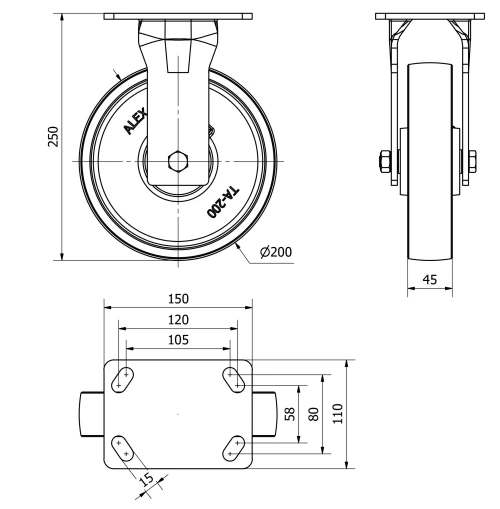

Technical Data 4-0381

EAN:

8422202403816

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Cast Iron

Bearing:

Ball

Diameter (mm):

200

Width of tyre (mm):

Plate dimensions (mm):

150x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Overall height (mm):

250

Load:

1180

Unit Weight of the wheel (kg):

6,1

Volume (cm³):

5500
