HLG SERIES-FT 2-1879

Code: 2-1879

Reinforced nylon double castor, especially indicated to support high-loads up to 2.500 Kg.

It is used in: logistics transport tools, cranes transporting heavy materials elevating platforms and mobile platforms.

Mainly used in the aeronautic sector, railway and automobile factories.

FT: Castors especially indicated for chemical and food industry applications. Does not leave marks on floor. Reinforced. High resistance to impacts and collisions.

Components

Brackets

Heavy fabricated castors made of welded steel up to 8 mm. Painted black. Combination of thrust ball bearing and tapered roller bearing in the swivel head: the upper for axial eff orts and the lower for radial efforts. Totally sealed swivel head, grease nipples on the swivel head and wheel. Manufactured to European standard EN 12532/12533.

Wheel

Reinforced nylon (Polyamid 6) wheel, white colour

Temperature range: -30º ÷ +80º

Rolling Resistence Excelent

Noise during the march Reasonable

Floor Protection Reasonable

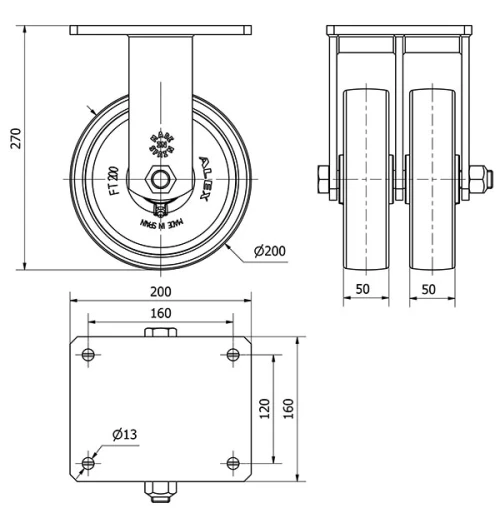

Technical Data 2-1879

EAN:

8422202218793

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Nylon(Polyamide 6)

Bearing:

Plain

Diameter (mm):

200

Width of tyre (mm):

50x2

Plate dimensions (mm):

200x160

Distance between holes (mm):

160x120

Plate hole diameter (mm):

Overall height (mm):

270

Load:

2000

Unit Weight of the wheel (kg):

7,26

Volume (cm³):

8640

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products

2-1873

2-3814

2-3832
