HLG SERIES-FT 2-3816

Code: 2-3816

Reinforced nylon double castor, especially indicated to support high-loads up to 2.500 Kg.

It is used in: logistics transport tools, cranes transporting heavy materials elevating platforms and mobile platforms.

Mainly used in the aeronautic sector, railway and automobile factories.

FT: Castors especially indicated for chemical and food industry applications. Does not leave marks on floor. Reinforced. High resistance to impacts and collisions.

Components

Brackets

Heavy fabricated castors made of welded steel up to 8 mm. Painted black. Combination of thrust ball bearing and tapered roller bearing in the swivel head: the upper for axial eff orts and the lower for radial efforts. Totally sealed swivel head, grease nipples on the swivel head and wheel. Manufactured to European standard EN 12532/12533.

Wheel

Reinforced nylon (Polyamid 6) wheel, white colour

Temperature range: -30º ÷ +80º

Rolling Resistence Excelent

Noise during the march Reasonable

Floor Protection Reasonable

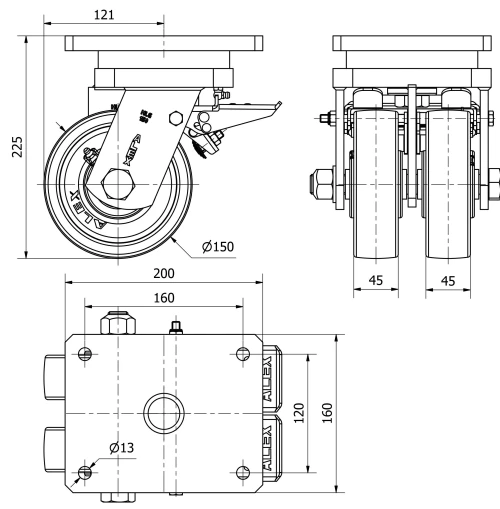

Technical Data 2-3816

EAN:

8422202238166

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake And Fork

Material:

Nylon(Polyamide 6)

Bearing:

Ball

Diameter (mm):

150

Width of tyre (mm):

45x2

Plate dimensions (mm):

200x160

Distance between holes (mm):

160x120

Plate hole diameter (mm):

Offset (mm):

121

Overall height (mm):

225

Load:

1800

Unit Weight of the wheel (kg):

10,869

Volume (cm³):

7956
