HLG SERIES-HG 2-1855
EAN 8422202218557

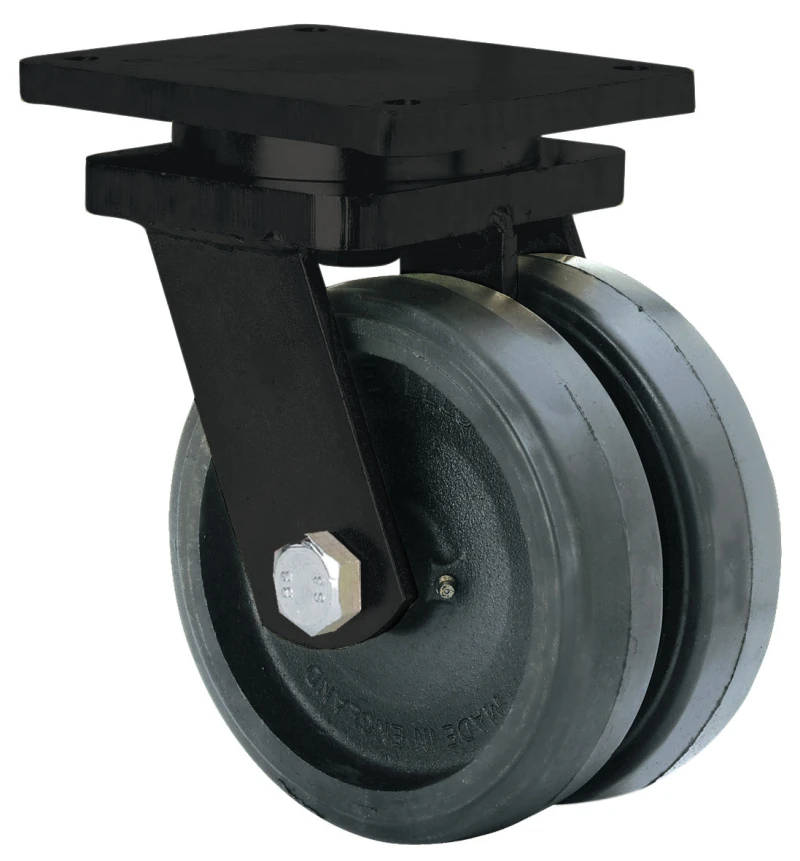

Double castor with steel centre and black rubber tyre. Especially indicated to support high-loads up to 1.400 Kg.
It is used in: logistics transport tools, mobile platforms, heavy loads transport cranes and elevating platforms.
Mainly used in the aeronautic sector, railway and automobile factories.
HG: Castors suitable for mechanic traction. High floor protection. Smooth and noiseless tread (elevating driven carts, trailers...). Industry in general.

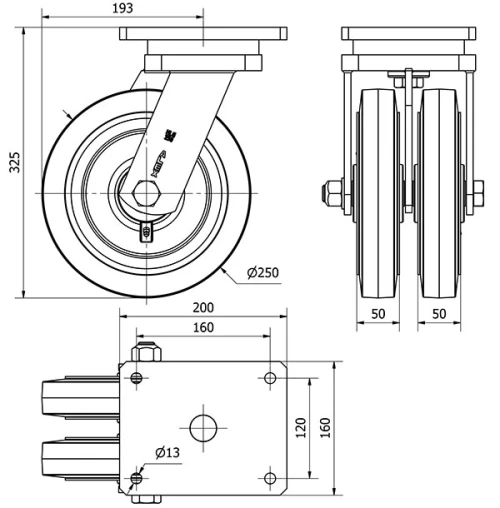

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Rubber |
Bearing | Ball |
Diameter (mm) | 250 |
Width of tyre (mm) | 50x2 |
Plate dimensions (mm) | 200x160 |
Distance between holes (mm) | 160x120 |
Plate hole diameter (mm) | 12 |
Offset (mm) | 193 |
Overall height (mm) | 325 |
Load | 1400 |
Unit Weight of the wheel (kg) | 21.7 |
Volume (cm3) | 15236 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Heavy fabricated castors made of welded steel up to 8 mm. Painted black. Combination of thrust ball bearing and tapered roller bearing in the swivel head: the upper for axial eff orts and the lower for radial efforts. Totally sealed swivel head, grease nipples on the swivel head and wheel. Manufactured to European standard EN 12532/12533.
-
Rolling Resistence Reasonable
-
Noise during the march Excelent
-
Floor Protection Excelent
