HLG SERIES-HU 2-3828
EAN 8422202238289
Double castor with steel centre and cast polyurethane tyre with a hardness of 95º Shore A, especially indicated to support high-loads up to 2.500 kg.
It is used in: logistics transport tools, cranes transporting heavy materials and elevating platforms.
Mainly used in the aeronautic sector, railway and automobile factories.
Castors with high absorption to impacts. Floor protection and high abrasion and wear resistance. Recommended for rough surfaces, broken, with metallic shavings, oil stains, broken glass, grease, gravel.

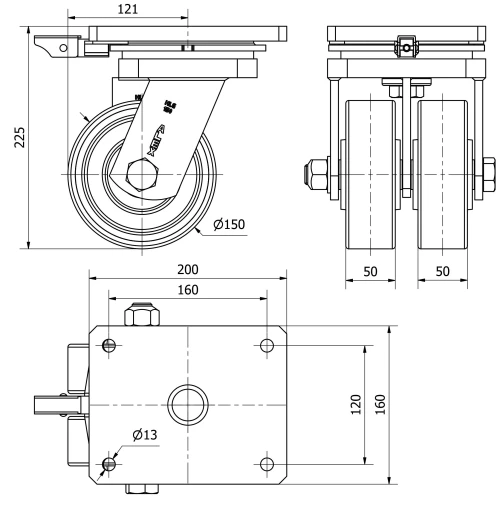

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Directional Lock |
Material | Polyurethane |
Hardness of tread | 95º SHORE A |
Bearing | Ball |
Diameter (mm) | 150 |
Width of tyre (mm) | 50x2 |
Plate dimensions (mm) | 200x160 |
Distance between holes (mm) | 160x120 |
Plate hole diameter (mm) | 12 |
Offset (mm) | 121 |
Overall height (mm) | 225 |
Load | 1600 |
Unit Weight of the wheel (kg) | 15.375 |
Volume (cm3) | 7956 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Heavy fabricated castors made of welded steel up to 8 mm. Painted black. Combination of thrust ball bearing and tapered roller bearing in the swivel head: the upper for axial eff orts and the lower for radial efforts. Totally sealed swivel head, grease nipples on the swivel head and wheel. Manufactured to European standard EN 12532/12533.
-
Rolling Resistence Very Good
-
Noise during the march Good
-
Floor Protection Very Good
