Which castors do you need?

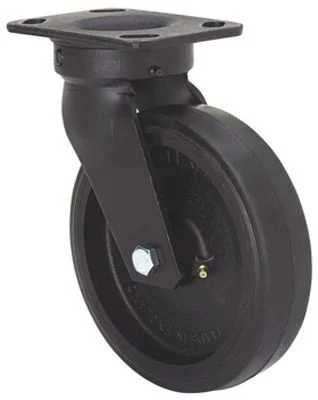

GT SERIES-HG 2-1969
EAN 8422202219691
Castors with steel centre and black rubber tyre, especially indicated to support high-loads up to 700 Kg.
It is used in logistics transport tools, internal logistics, mobile platforms, elevating platforms, transport carts, logistics for military missions material, heavy machinery for the construction sector, mobile cranes and slaughterhouses.
Mainly used in the textile sector, aeronautic sector, railway and automobile factories.
HG: castor suitable for mechanical traction (elevating driven carts, trailers...) as well as manual. Industry in general.

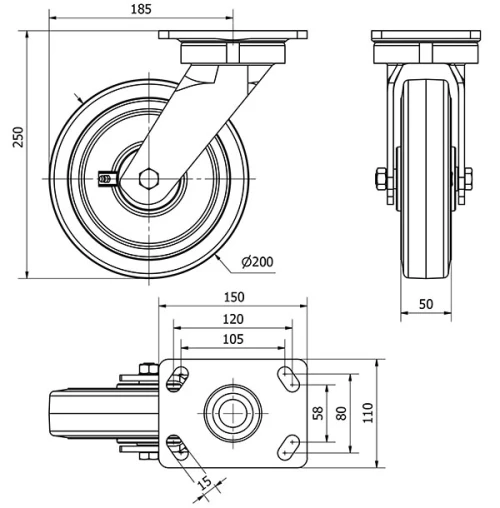

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Rubber |
Bearing | Ball |
Diameter (mm) | 200 |
Width of tyre (mm) | 50 |
Plate dimensions (mm) | 150x110 |
Distance between holes (mm) | 105x80 |
Plate hole diameter (mm) | 12 |
Offset (mm) | 185 |
Overall height (mm) | 250 |
Load | 600 |
Unit Weight of the wheel (kg) | 6.95 |
Volume (cm3) | 7150 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Forged kingpinless castor made of steel up to 8 mm.Painted black.Swivel head contains hard steel balls designed to withstand radial and lateral efforts.Totally sealed swivel head with grease nipple.Manufactured to European standard EN 12532/12533.
-
Rolling Resistence Reasonable
-
Noise during the march Excelent
-
Floor Protection Excelent
