GT SERIES-HG 2-1970

Code: 2-1970

Castors with steel centre and black rubber tyre, especially indicated to support high-loads up to 700 Kg.

It is used in logistics transport tools, internal logistics, mobile platforms, elevating platforms, transport carts, logistics for military missions material, heavy machinery for the construction sector, mobile cranes and slaughterhouses.

Mainly used in the textile sector, aeronautic sector, railway and automobile factories.

HG: castor suitable for mechanical traction (elevating driven carts, trailers...) as well as manual. Industry in general.

Components

Brackets

Forged kingpinless castor made of steel up to 8 mm.Painted black.Swivel head contains hard steel balls designed to withstand radial and lateral efforts.Totally sealed swivel head with grease nipple.Manufactured to European standard EN 12532/12533.

Wheel

Rubber tyre on cast iron centre with grease nipple

Temperature range: -20º ÷ +60º

Rolling Resistence Reasonable

Noise during the march Excelent

Floor Protection Excelent

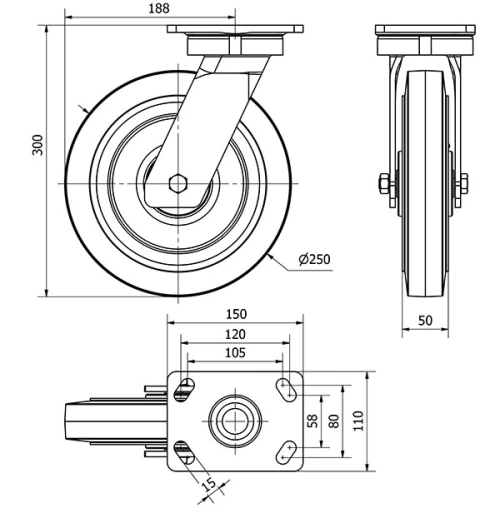

Technical Data 2-1970

EAN:

8422202219707

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Rubber

Bearing:

Ball

Diameter (mm):

250

Width of tyre (mm):

Plate dimensions (mm):

150x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Offset (mm):

188

Overall height (mm):

300

Load:

700

Unit Weight of the wheel (kg):

9,42

Volume (cm³):

8679
