Which castors do you need?
GT SERIES-HU 4-0150
EAN 8422202401508

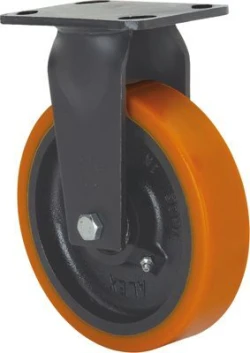

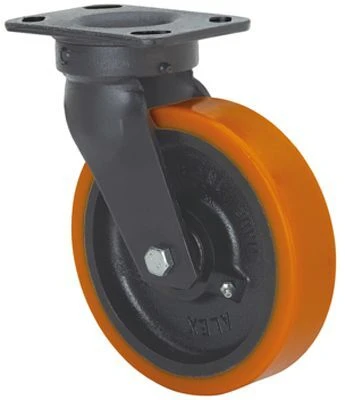

Castors with steel centre and cast polyurethane tyre with a hardness of 95º Shore A, especially indicated to support high-loads up to 1.250 Kg.
It is used in: logistics transport tools, outdoor areas, internal logistics, mobile platforms, elevating platforms, transport carts, logistics, heavy machinery for the construction sector and mobile cranes.
Mainly used in the aeronautic sector, railway and automobile factories.
HU: high absorption to impacts. Unfavourable flooring surfaces conditions. Rough surfaces, broken, with metallic shavings, oil stains, broken glass, grease and gravel.

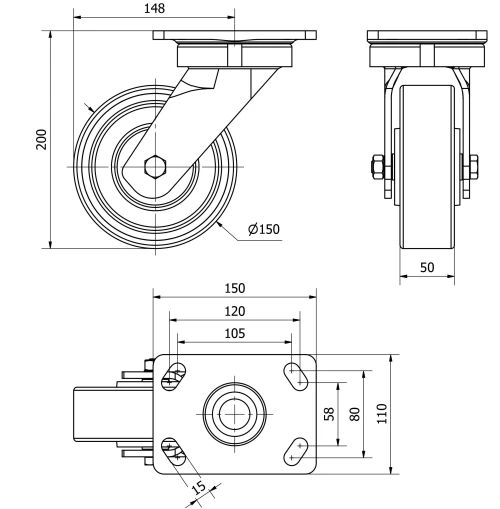

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Polyurethane |
Hardness of tread | 95º SHORE A |
Bearing | Ball |
Diameter (mm) | 150 |
Width of tyre (mm) | 50 |
Plate dimensions (mm) | 150x110 |
Distance between holes (mm) | 105x80 |
Plate hole diameter (mm) | 12 |
Offset (mm) | 148 |
Overall height (mm) | 200 |
Load | 800 |
Unit Weight of the wheel (kg) | 6 |
Volume (cm3) | 4906 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Forged kingpinless castor made of steel up to 8 mm. Painted black. Swivel head contains hard steel balls designed to withstand radial and lateral efforts. Totally sealed swivel head with grease nipple. Manufactured to European standard EN 12532/12533.
-
Rolling Resistence Very Good
-
Noise during the march Good
-
Floor Protection Very Good
