GT SERIES-HU 4-0172

Code: 4-0172

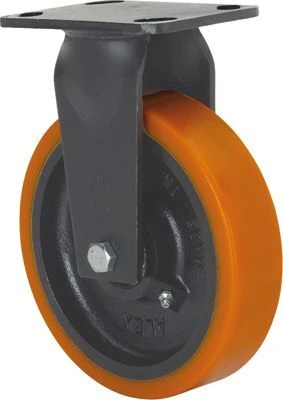

Castors with steel centre and cast polyurethane tyre with a hardness of 95º Shore A, especially indicated to support high-loads up to 1.250 Kg.

It is used in: logistics transport tools, outdoor areas, internal logistics, mobile platforms, elevating platforms, transport carts, logistics, heavy machinery for the construction sector and mobile cranes.

Mainly used in the aeronautic sector, railway and automobile factories.

HU: high absorption to impacts. Unfavourable flooring surfaces conditions. Rough surfaces, broken, with metallic shavings, oil stains, broken glass, grease and gravel.

Components

Brackets

Forged kingpinless castor made of steel up to 8 mm. Painted black. Swivel head contains hard steel balls designed to withstand radial and lateral efforts. Totally sealed swivel head with grease nipple. Manufactured to European standard EN 12532/12533.

Wheel

Rolling Resistence Very Good

Noise during the march Good

Floor Protection Very Good

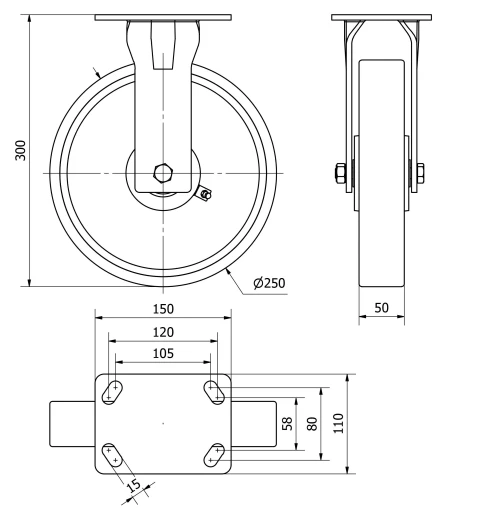

Technical Data 4-0172

EAN:

8422202401720

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Polyurethane

Hardness of tread:

95º SHORE A

Bearing:

Ball

Diameter (mm):

250

Width of tyre (mm):

Plate dimensions (mm):

150x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Overall height (mm):

300

Load:

1250

Unit Weight of the wheel (kg):

Volume (cm³):

8250

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF
