GT SERIES-PO 4-0942

Code: 4-0942

Castors with white nylon centre and red polyurethane tyre with a hardness of 90-95º Shore A. Especially indicated to support high-loads up to 600 Kg.

It is used in: logistics tranport tools, outdoor areas, internal logistics, carbody factories, mobile platforms, elevating platforms, logistics for military missions material, heavy machinery, mobile cranes, elevating tables and boilers.

Mainly used in the aeronautic sector, railway and automobile factories.

PO: elastic and noiseless functioning. High floor protection. Long useful life.

Components

Brackets

Forged kingpinless castor made of steel up to 8 mm. Painted black. Swivel head contains hard steel balls designed to withstand radial and lateral efforts. Totally sealed swivel head with grease nipple. Manufactured to European standard EN 12532/12533.

Wheel

Red polyurethane tyre on white polyamide centre.95º shore A

Temperature range: -25º ÷ +80º

Rolling Resistence Very Good

Noise during the march Very Good

Floor Protection Very Good

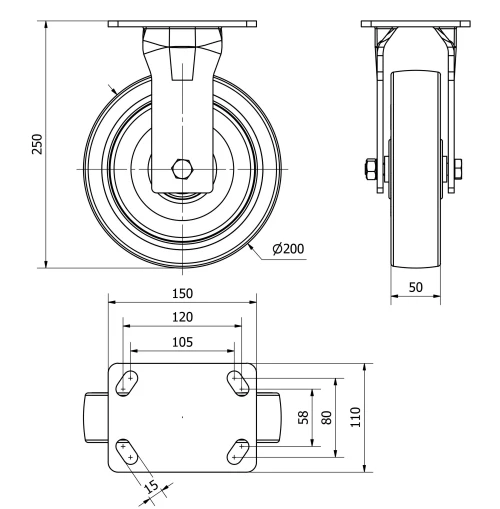

Technical Data 4-0942

EAN:

8422202409429

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Polyurethane

Hardness of tread:

90-95º SHORE A

Bearing:

Ball

Diameter (mm):

200

Width of tyre (mm):

Plate dimensions (mm):

150x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Overall height (mm):

250

Load:

600

Unit Weight of the wheel (kg):

3,22

Volume (cm³):

4125
