HLG SERIES-TA 2-3840

Code: 2-3840

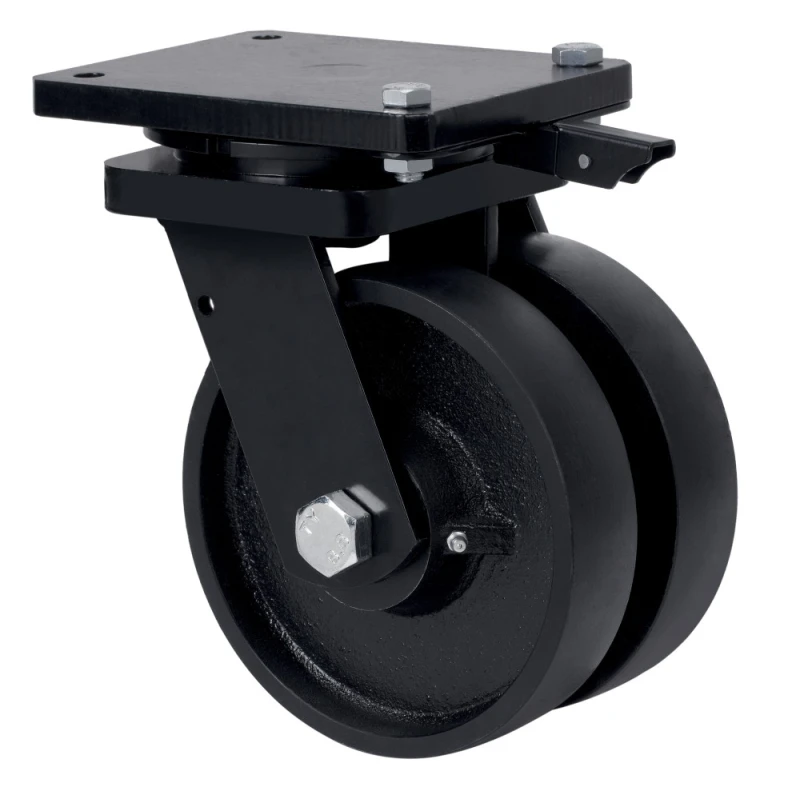

Steel double castors, especially indicated to support high-loads up to 2.700 Kg.

It is used in: logistics transport tools, transport carts for the mining industry, furnaces standing high temperatures (-90º to +600º), cranes transporting heavy materials and elevating platforms.

Mainly used in the aeronautic sector, construction sector, public services, railway and automobile factories.

TA: tough work conditions where the existence of cutting objects, chemical products or high temperatures could destroy other kind of castors. Heavy duty.

For temperatures above 200ºC, load (Kg) should be reduced by 40%.

Components

Brackets

Heavy fabricated castors made of welded steel up to 8 mm. Painted black. Combination of thrust ball bearing and tapered roller bearing in the swivel head: the upper for axial eff orts and the lower for radial efforts. Totally sealed swivel head, grease nipples on the swivel head and wheel. Manufactured to European standard EN 12532/12533.

Wheel

Cast iron wheel

Temperature range: -40º ÷ +300º

Rolling Resistence Excelent

Noise during the march Sufficient

Floor Protection Sufficient

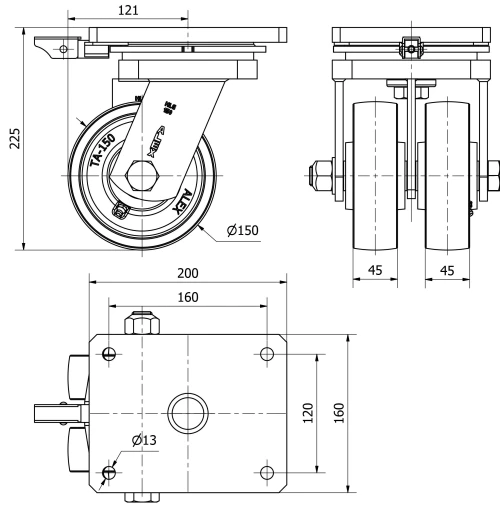

Technical Data 2-3840

EAN:

8422202238401

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Directional Lock

Material:

Cast Iron

Bearing:

Ball

Diameter (mm):

150

Width of tyre (mm):

45x2

Plate dimensions (mm):

200x160

Distance between holes (mm):

160x120

Plate hole diameter (mm):

Offset (mm):

121

Overall height (mm):

225

Load:

2000

Unit Weight of the wheel (kg):

15,935

Volume (cm³):

7956
