HLR SERIES-HU 2-4252

Code: 2-4252

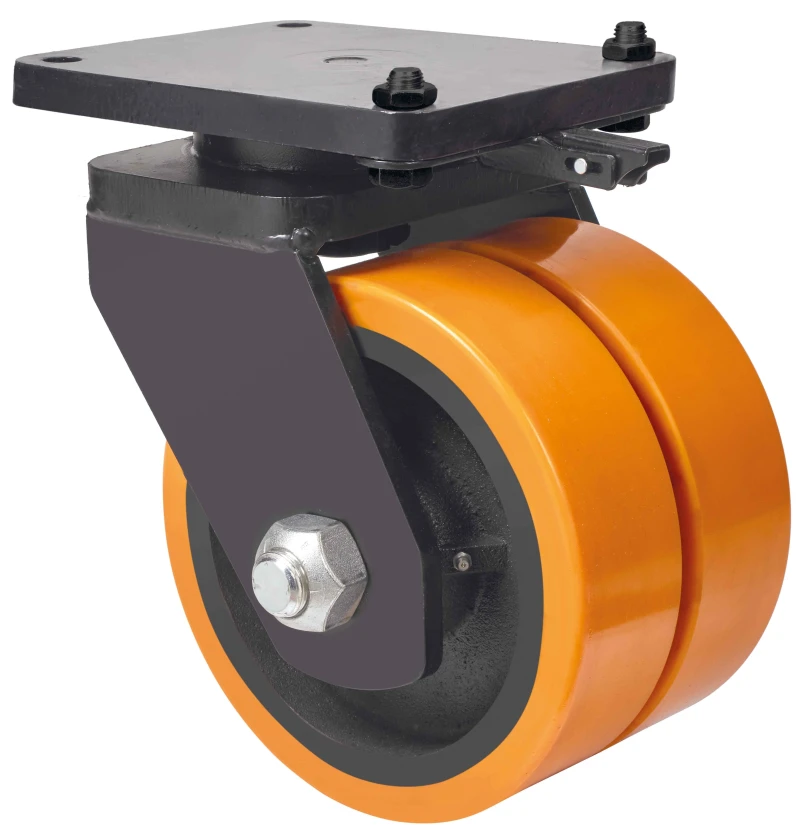

Double castors with steel centre and cast polyurethane tyre with a hardness of 95º Shore A, especially indicated to support high-loads up to 4.000 Kg.

It is used in: logistics transport tools, cranes transporting heavy materials and elevating platforms.

HU: high absorption to impacts. Protection of floors and high resistance to the abrasion wear. Noiseless. Recommended for rough flooring surfaces, uneven, broken, with metallic shavings, oil stains, broken glass, grease and gravel.

Components

Brackets

Made of welded steel up to 12mm .Black painted finish. Combination of thrust ball bearing and roller bearing in the head: the upper for axial efforts and the lower for radial efforts. Protected swivel head, with grease nipple and solid welded central rod. Wheel with precision ball bearings and solid threaded axle. Manufactured to European Standard EN 12532

Wheel

Rolling Resistence Very Good

Noise during the march Good

Floor Protection Very Good

Technical Data 2-4252

EAN:

8422202242521

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Directional Lock

Bearing:

Ball

Diameter (mm):

250

Width of tyre (mm):

75X2

Plate dimensions (mm):

255X200

Distance between holes (mm):

210X160

Plate hole diameter (mm):

Offset (mm):

205

Overall height (mm):

330

Load:

3200

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF
