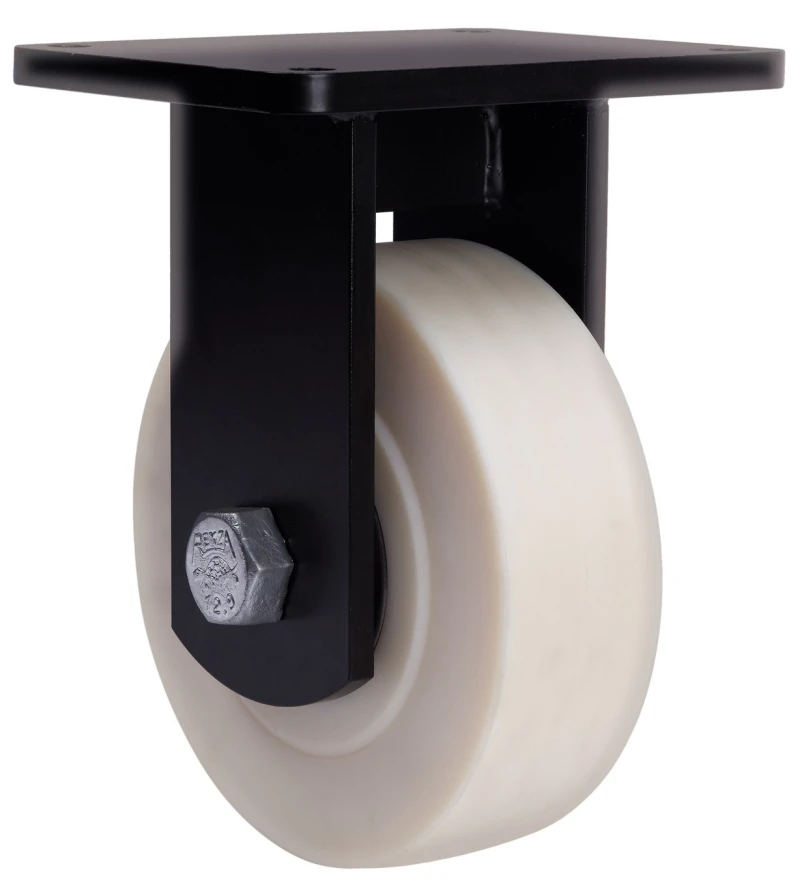

HLR SERIES-NF 2-3600
EAN 8422202236001
High density reinforced cast nylon castors, very resistant to all kind of chemical products and abrasion wear. Especially indicated to support high-loads up to 7.000 Kg.
It is used in: ship trailers, logistics transport tools, cranes transporting heavy materials and elevating platforms.
Mainly used in the railway sector and ports, due to its high corrosion resistance against external factors. Used in wind farms.
Extra heavy duty castors. High resistance to impacts and collisions. Extra heavy. Low resistance to traction.

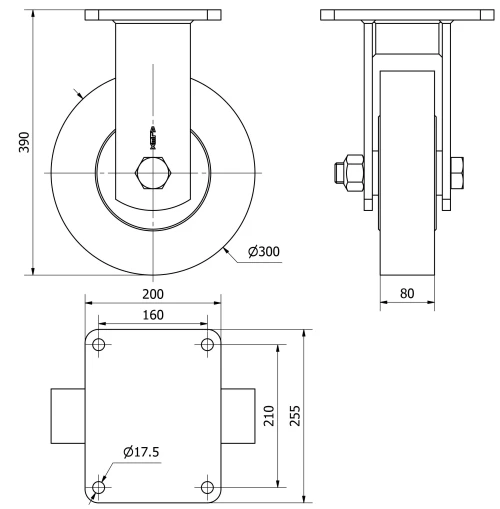

Technical Data
Housing Type | Fixed |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Bearing | Ball |
Diameter (mm) | 300 |
Width of tyre (mm) | 80 |
Plate dimensions (mm) | 255x200 |
Distance between holes (mm) | 210x160 |
Plate hole diameter (mm) | 16 |
Overall height (mm) | 390 |
Load | 6000 |
Unit Weight of the wheel (kg) | 22 |
Volume (cm3) | 23400 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of welded steel up to 12mm .Black painted finish. Combination of thrust ball bearing and roller bearing in the head: the upper for axial efforts and the lower for radial efforts. Protected swivel head, with grease nipple and solid welded central rod. Wheel with precision ball bearings and solid threaded axle. Manufactured to European Standard EN 12532
-
Rolling Resistence Excelent
-
Noise during the march Reasonable
-
Floor Protection Reasonable
