SERIE HLS-FT

Categories

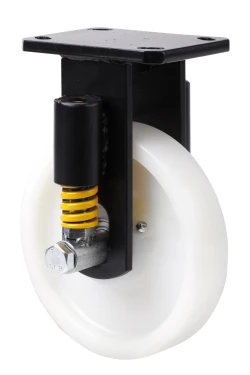

Reinforced nylon castors especially indicated to support high-loads up to 1.250 Kg. With highly resistant spring loaded suspension, ideal in uneven surfaces due to its shock absorption.

It is used in: logistics transport tools, internal logistics, mobile platforms, elevating platforms, transport carts, logistics for military missions material, heavy machinery for the construction sector and mobile cranes.

Mainly used in the aeronautic sector, railway and automobile factories.

FT: especially indicated for food and chemical industry applications. Does not leave marks on floor. Reinforced. Canning factories.

See comparative

HLS SERIES-FT

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-3181 150 900 45 Bearing: Ball 150x110 105x80 10 246 129
2-3185 200 1000 50 Bearing: Ball 150x110 105x80 10 271 154
2-3189 250 1300 57 Bearing: Ball 150x110 105x80 10 320 188

HLS SERIES-FT

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-3193 150 900 45 Bearing: Ball 150x110 105x80 10 246 --
2-3197 200 1000 50 Bearing: Ball 150x110 105x80 10 271 --
2-3201 250 1300 57 Bearing: Ball 150x110 105x80 10 320 --

HLS SERIES-FT

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4044 150 900 45 Bearing: Ball 150x110 105x80 10 246 129
2-4045 200 1000 50 Bearing: Ball 150x110 105x80 10 271 154
2-4046 250 1300 57 Bearing: Ball 150x110 105x80 10 320 188

Other castors SERIE HLS

SERIE HLS-HU
SERIE HLS-HU
Diametro 150-250 mm
Carga 800-1.250 kg
SERIE HLS-HUAB
SERIE HLS-HUAB
Diametro 150-200 mm
Carga 600-800 kg
SERIE HLS-DE
SERIE HLS-DE
Diametro 160-250 mm
Carga 350-500 kg
SERIE HLS-DEGB
SERIE HLS-DEGB
Diametro 160-200 mm
Carga 350-450 kg
SERIE HLS-HG
SERIE HLS-HG
Diametro 150-250 mm
Carga 400-700 kg
