SERIE HLS-HG

Categories

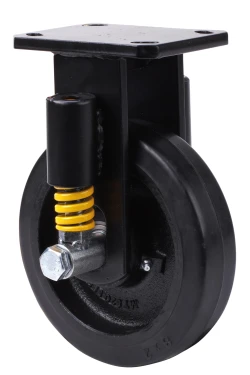

Castors with steel centre and black rubber tyre. Especially indicated to support high-loads up to 700 Kg. With highly resistant spring loaded suspension, ideal in uneven surfaces due to its shock absorption.

It is used in: logistics transport tools, outdoor areas, mobile cranes and logistics for military missions material.

Mainly used in the aeronautic sector, railway and automobile factories. Suitable for mechanical engineering projects by draftsmen and project executors.

HG: castor suitable for mechanical traction (elevating driven carts, trailers...). High floor protection. Smooth and noiseless tread. Industry in general.

See comparative

HLS SERIES-HG

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-3179 150 400 50 Bearing: Ball 150x110 105x80 10 246 129
2-3183 200 600 50 Bearing: Ball 150x110 105x80 10 271 154
2-3187 250 700 50 Bearing: Ball 150x110 105x80 10 320 188

HLS SERIES-HG

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-3191 150 400 50 Bearing: Ball 150x110 105x80 10 246 --
2-3195 200 600 50 Bearing: Ball 150x110 105x80 10 271 --
2-3199 250 700 50 Bearing: Ball 150x110 105x80 10 320 --

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4050 150 400 50 Bearing: Ball 150x110 105x80 10 246 129
2-4051 200 600 50 Bearing: Ball 150x110 105x80 10 271 154
2-4052 250 700 50 Bearing: Ball 150x110 105x80 10 320 188

Other castors SERIE HLS

SERIE HLS-HU
SERIE HLS-HU
Diametro 150-250 mm
Carga 800-1.250 kg
SERIE HLS-HUAB
SERIE HLS-HUAB
Diametro 150-200 mm
Carga 600-800 kg
SERIE HLS-FT
SERIE HLS-FT
Diametro 150-250 mm
Carga 900-1.300 kg
SERIE HLS-DE
SERIE HLS-DE
Diametro 160-250 mm
Carga 350-500 kg
SERIE HLS-DEGB
SERIE HLS-DEGB
Diametro 160-200 mm
Carga 350-450 kg
