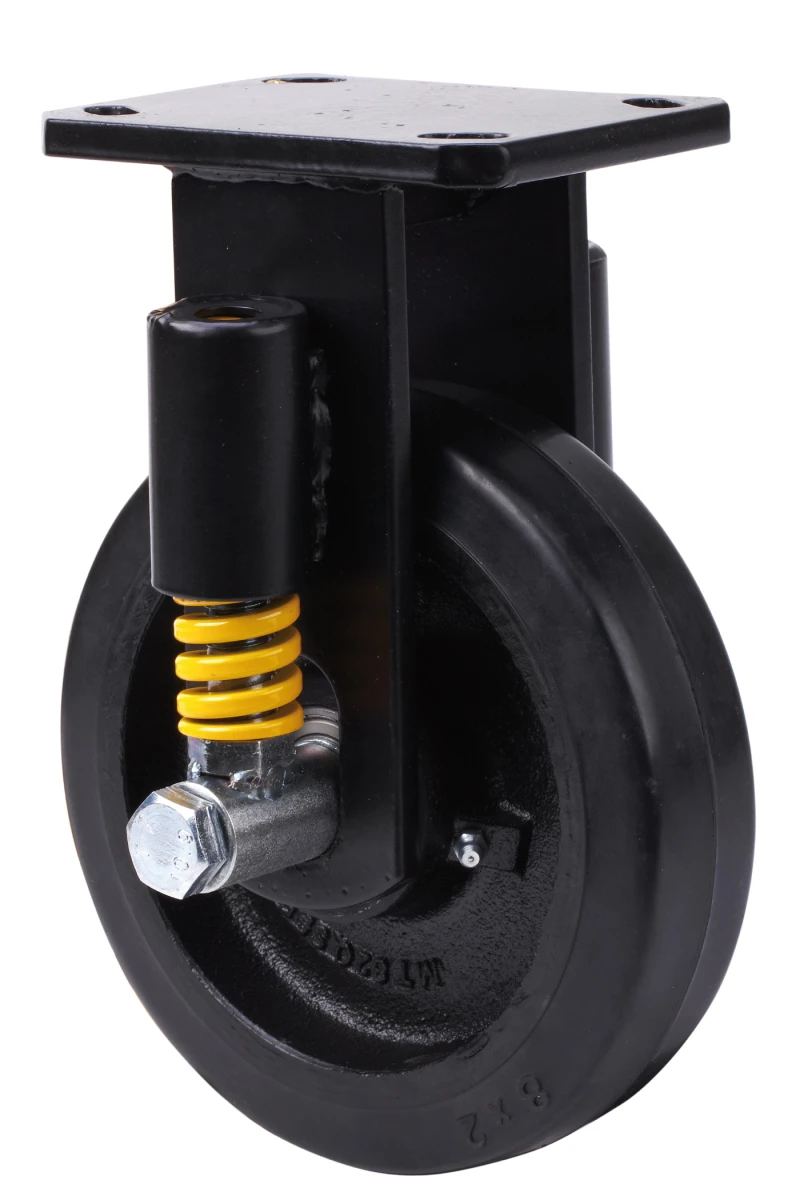

HLS SERIES-HG 2-3199

Code: 2-3199

Castors with steel centre and black rubber tyre. Especially indicated to support high-loads up to 700 Kg. With highly resistant spring loaded suspension, ideal in uneven surfaces due to its shock absorption.

It is used in: logistics transport tools, outdoor areas, mobile cranes and logistics for military missions material.

Mainly used in the aeronautic sector, railway and automobile factories. Suitable for mechanical engineering projects by draftsmen and project executors.

HG: castor suitable for mechanical traction (elevating driven carts, trailers...). High floor protection. Smooth and noiseless tread. Industry in general.

Components

Brackets

Made of welded steel from 8mm. to 18mm. thickness. Black paint finish. Bracket with highly resistant spring loaded suspension. Spring travel up to 24,5mm for a load of 700kg. Especially designed to absorb impacts, collisions and uneven surfaces. Manufactured according to European Standards EN12532/12533

Wheel

Rubber tyre on cast iron centre with grease nipple

Temperature range: -20º ÷ +60º

Rolling Resistence Reasonable

Noise during the march Excelent

Floor Protection Excelent

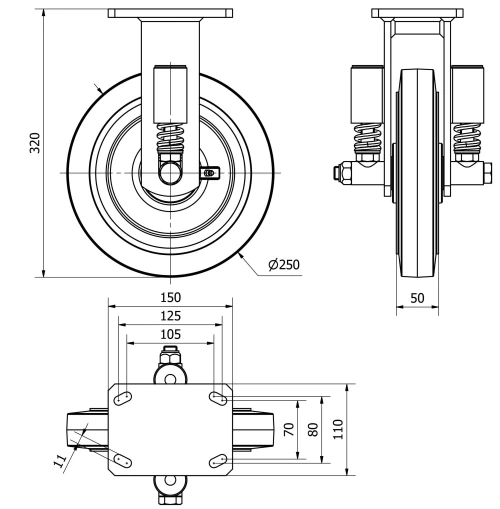

Technical Data 2-3199

EAN:

8422202231990

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Rubber

Bearing:

Ball

Diameter (mm):

250

Width of tyre (mm):

Plate dimensions (mm):

150x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Overall height (mm):

320

Load:

700

Unit Weight of the wheel (kg):

10,704

Volume (cm³):

8800
