Which castors do you need?
KV SERIES-FT 4-0188
EAN 8422202401881
Reinforced nylon castors, especially indicated to support high-loads up to 1.250 Kg.
It is used in: logistics transport tools, outdoor areas, internal logistics, mobile platforms, elevating platforms, transport carts, logistics for military transport material, heavy machinery for the construction sector, mobile cranes and sport centres.
Mainly used in the aeronautic sector, railway and automobile factories.
FT: especially indicated for food and chemical industries applications. Does not leave marks on floor. Reinforced. Canning factories.

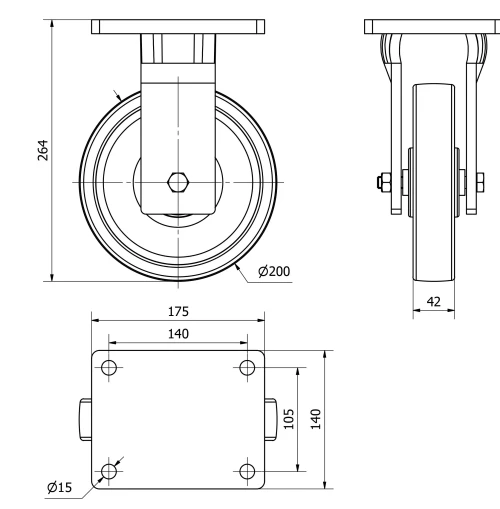

Technical Data
Housing Type | Fixed |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Nylon(Polyamide 6) |
Bearing | Ball |
Diameter (mm) | 200 |
Width of tyre (mm) | 42 |
Plate dimensions (mm) | 175x140 |
Distance between holes (mm) | 140x105 |
Plate hole diameter (mm) | 14 |
Overall height (mm) | 264 |
Load | 1000 |
Unit Weight of the wheel (kg) | 5.98 |
Volume (cm3) | 7392 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Fabricated castor made of cast iron up to 10 mm with a forged kingpin.Painted black.Combination of precision thrust bearing and tapered roller bearing in the swivel head.Totally sealed swivel head with grease nipple on the swivel head and wheel.Manufactured to European standard EN 12532/12533.
-
Rolling Resistence Excelent
-
Noise during the march Reasonable
-
Floor Protection Reasonable
