KV SERIES-FT 4-0189

Code: 4-0189

Reinforced nylon castors, especially indicated to support high-loads up to 1.250 Kg.

It is used in: logistics transport tools, outdoor areas, internal logistics, mobile platforms, elevating platforms, transport carts, logistics for military transport material, heavy machinery for the construction sector, mobile cranes and sport centres.

Mainly used in the aeronautic sector, railway and automobile factories.

FT: especially indicated for food and chemical industries applications. Does not leave marks on floor. Reinforced. Canning factories.

Components

Brackets

Fabricated castor made of cast iron up to 10 mm with a forged kingpin.Painted black.Combination of precision thrust bearing and tapered roller bearing in the swivel head.Totally sealed swivel head with grease nipple on the swivel head and wheel.Manufactured to European standard EN 12532/12533.

Wheel

Reinforced nylon (Polyamid 6) wheel, white colour

Temperature range: -30º ÷ +80º

Rolling Resistence Excelent

Noise during the march Reasonable

Floor Protection Reasonable

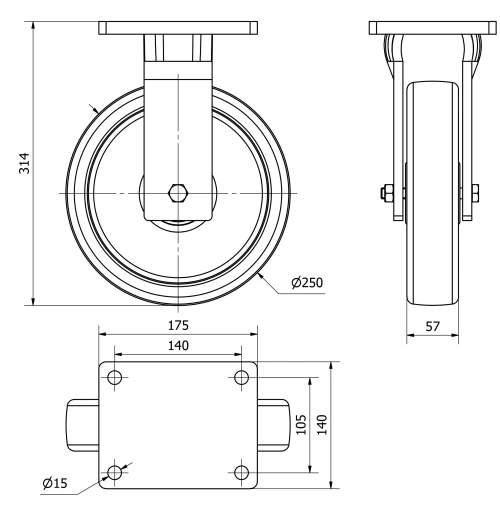

Technical Data 4-0189

EAN:

8422202401898

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Nylon(Polyamide 6)

Bearing:

Plain

Diameter (mm):

250

Width of tyre (mm):

Plate dimensions (mm):

175x140

Distance between holes (mm):

140x105

Plate hole diameter (mm):

Overall height (mm):

314

Load:

1250

Unit Weight of the wheel (kg):

7,42

Volume (cm³):

10990
