KV SERIES-HG 2-1964

Code: 2-1964

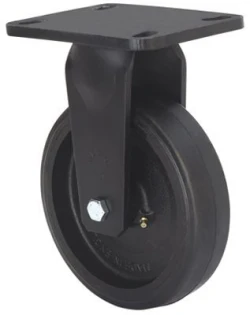

Castors with steel centre and black rubber tyre, especially indicated to support high-loads up to 750 Kg.

It is used in: logistics transport tools, internal logistics, mobile platforms, elevating platforms, transport carts, logistics for military missions material, heavy machinery for the construction sector and mobile cranes.

Mainly used in the aeronautic sector, railway and automobile factories.

HG: castors suitable for mechanical traction (elevating driven carts, trailers...) as well as manual. Industry in general.

Components

Brackets

Fabricated castor made of cast iron up to 10 mm with a forged kingpin.Painted black.Combination of precision thrust bearing and tapered roller bearing in the swivel head.Totally sealed swivel head with grease nipple on the swivel head and wheel.Manufactured to European standard EN 12532/12533.

Wheel

Rubber tyre on cast iron centre with grease nipple

Temperature range: -20º ÷ +60º

Rolling Resistence Reasonable

Noise during the march Excelent

Floor Protection Excelent

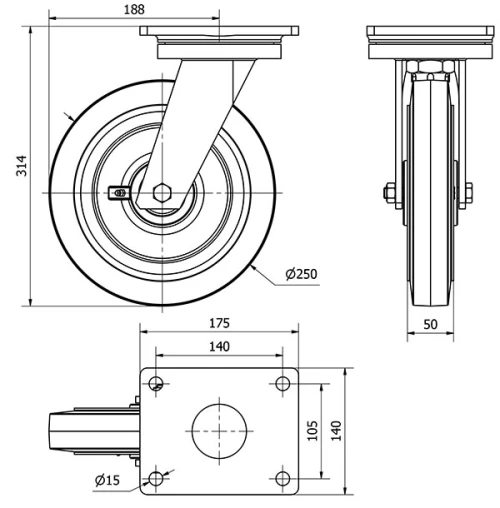

Technical Data 2-1964

EAN:

8422202219646

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Rubber

Bearing:

Ball

Diameter (mm):

250

Width of tyre (mm):

Plate dimensions (mm):

175x140

Distance between holes (mm):

140x105

Plate hole diameter (mm):

Offset (mm):

188

Overall height (mm):

314

Load:

700

Unit Weight of the wheel (kg):

11,66

Volume (cm³):

12111
