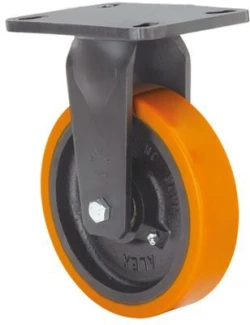

KV SERIES-HU 4-0440

Code: 4-0440

Castors with steel centre and cast polyurethane tyre with a hardness of 95º shore A. Especially indicated to support high-loads up to 1.270 Kg.

It is used in: logistics transport tools, outdoor areas, internal logistics, mobile platforms, elevating platforms, transport carts, logistics, heavy machinery for the construction sector and mobile cranes.

Mainly used in the aeronautic sector, railway and automobile factories.

HU: high absorption to impacts. Unfavourable flooring surfaces conditions. Rough surfaces, broken, with metallic shavings, oil stains, broken glass, grease and gravel.

Components

Brackets

Fabricated castor made of cast iron up to 10 mm with a forged kingpin. Painted black. Combination of precision thrust bearing and tapered roller bearing in the swivel head. Totally sealed swivel head with grease nipple on the swivel head and wheel. Manufactured to European standard EN 12532/12533.

Wheel

Rolling Resistence Very Good

Noise during the march Good

Floor Protection Very Good

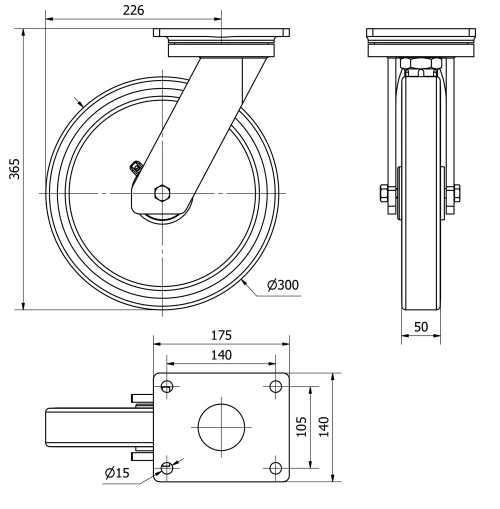

Technical Data 4-0440

EAN:

8422202404400

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Polyurethane

Hardness of tread:

95º SHORE A

Bearing:

Ball

Diameter (mm):

300

Width of tyre (mm):

Plate dimensions (mm):

175x140

Distance between holes (mm):

140x105

Plate hole diameter (mm):

Offset (mm):

226

Overall height (mm):

365

Load:

1270

Unit Weight of the wheel (kg):

14,3

Volume (cm³):

16020

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products

4-0442
