KV SERIES-PO 4-1115

Code: 4-1115

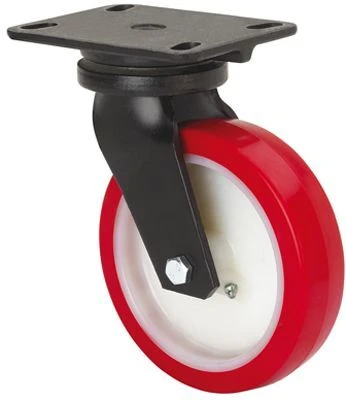

Castors with white nylon centre and red polyurethane tyre with a hardness of 90-95º Shore A. Especially indicated to support high-loads up to 600 Kg.

It is used in: logistics transport tools, outdoor areas, internal logistics, carbody factories, mobile platforms, elevating platforms, logistics for military missions material, heavy machinery, mobile cranes, elevating tables and boilers.

Mainly used in the aeronautic sector, railway and automobile factories.

PO: elastic and noiseless functioning. High floor protection. Noiseless. Long useful life.

Components

Brackets

Fabricated castor made of cast iron up to 10 mm with a forged kingpin. Painted black. Combination of precision thrust bearing and tapered roller bearing in the swivel head. Totally sealed swivel head with grease nipple on the swivel head and wheel. Manufactured to European standard EN 12532/12533.

Wheel

Red polyurethane tyre on white polyamide centre.95º shore A

Temperature range: -25º ÷ +80º

Rolling Resistence Very Good

Noise during the march Very Good

Floor Protection Very Good

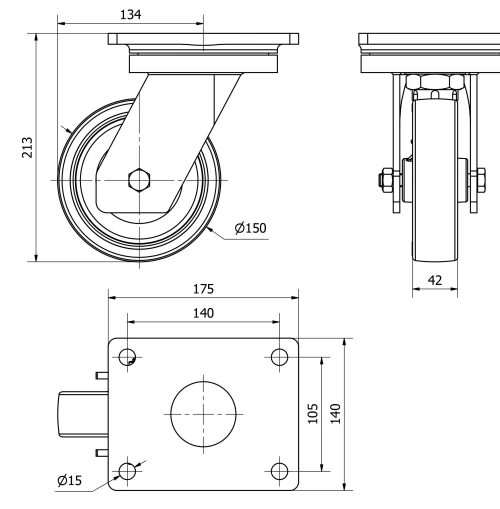

Technical Data 4-1115

EAN:

8422202411156

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Polyurethane

Hardness of tread:

90-95º SHORE A

Bearing:

Plain

Diameter (mm):

150

Width of tyre (mm):

Plate dimensions (mm):

175x140

Distance between holes (mm):

140x105

Plate hole diameter (mm):

Offset (mm):

134

Overall height (mm):

213

Load:

450

Unit Weight of the wheel (kg):

7,45

Volume (cm³):

6605
