KV SERIES-TA 4-0424

Code: 4-0424

Steel castors, especially indicated to support high-loads up to 1.350 Kg.

It is used in: logistics transport tools, furnaces standing high temperatures (-40º to +300º) and heavy machinery for the construction sector.

Mainly used in railway and automobile factories.

TA: very tough work conditions where the existence of cutting objects, chemical products or high temperatures would destroy other kind of castors. Heavy duty.

Components

Brackets

Fabricated castor made of cast iron up to 10 mm with a forged kingpin.Painted black.Combination of precision thrust bearing and tapered roller bearing in the swivel head.Totally sealed swivel head with grease nipple on the swivel head and wheel.Manufactured to European standard EN 12532/12533.

Wheel

Cast iron wheel

Temperature range: -40º ÷ +300º

Rolling Resistence Excelent

Noise during the march Sufficient

Floor Protection Sufficient

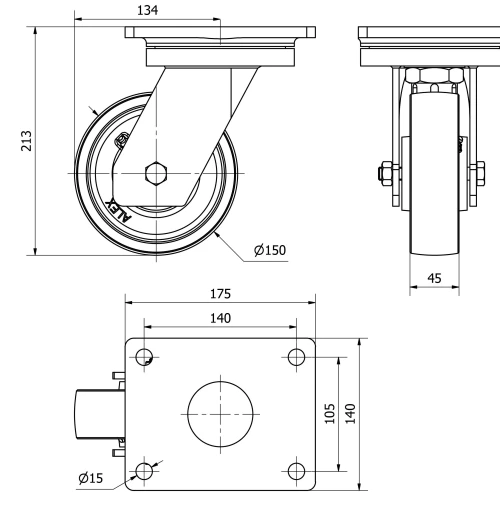

Technical Data 4-0424

EAN:

8422202404240

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Cast Iron

Bearing:

Ball

Diameter (mm):

150

Width of tyre (mm):

Plate dimensions (mm):

175x140

Distance between holes (mm):

140x105

Plate hole diameter (mm):

Offset (mm):

134

Overall height (mm):

213

Load:

1175

Unit Weight of the wheel (kg):

9,325

Volume (cm³):

6605
