SERIE FM-FM 2-4552

See comparative

Code: 2-4552

Black polyamide wheels. Especially designed to support loads up to 1.500 Kg.

Adjustment range 15 mm.

Used in industries and especially designed for heavy machinery which is moved for short distances.

Good floor protection. Easy rolling.

Components

Brackets

Bracket made from die-cast aluminium. Painted and zinc plated finish. Good abrasion and bending resistance. Reinforced synthetic rubber foot, with an adjustment range of 15mm.

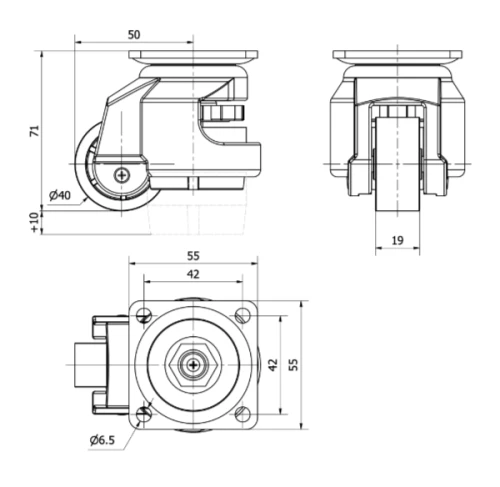

Technical Data 2-4552

EAN:

8422202245522

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Polyamide

Bearing:

Plain

Color:

Black

Diameter (mm):

Width of tyre (mm):

Plate dimensions (mm):

55x55

Distance between holes (mm):

42x42

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

Load:

Unit Weight of the wheel (kg):

0,4

Volume (cm³):

353
