SERIE FM-FM 2-4554

See comparative

Code: 2-4554

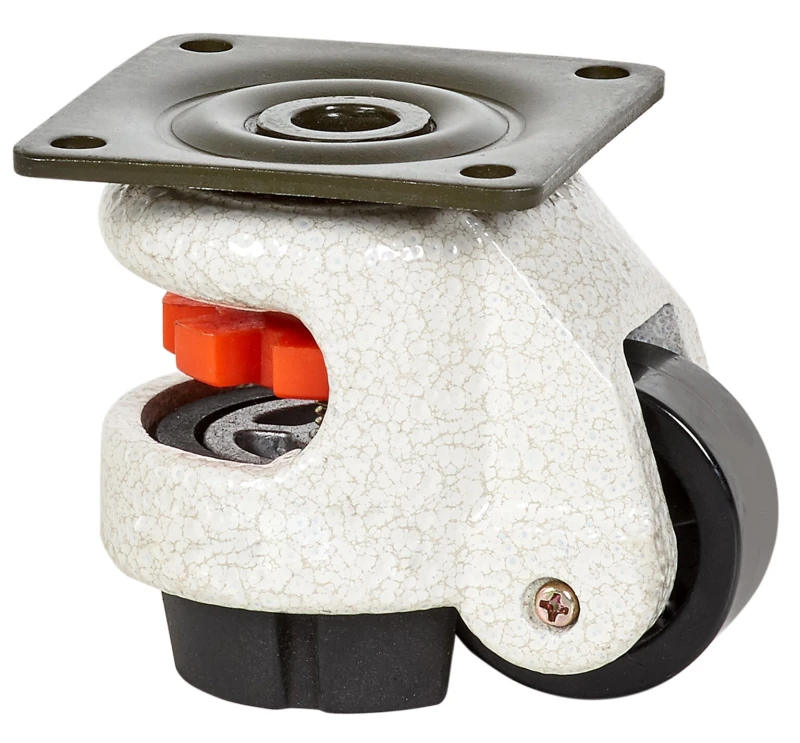

Black polyamide wheels. Especially designed to support loads up to 1.500 Kg.

Adjustment range 15 mm.

Used in industries and especially designed for heavy machinery which is moved for short distances.

Good floor protection. Easy rolling.

Components

Brackets

Bracket made from die-cast aluminium. Painted and zinc plated finish. Good abrasion and bending resistance. Reinforced synthetic rubber foot, with an adjustment range of 15mm.

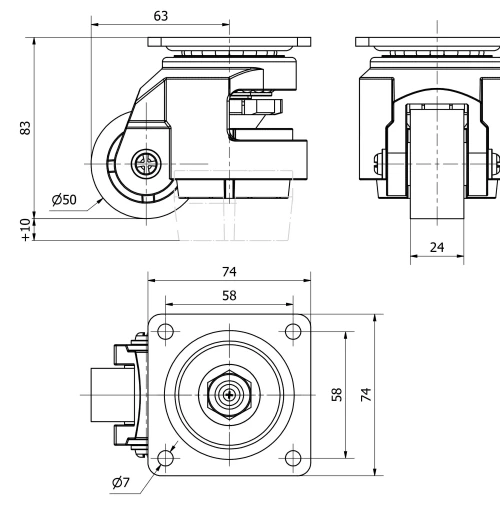

Technical Data 2-4554

EAN:

8422202245546

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Polyamide

Bearing:

Plain

Color:

Black

Diameter (mm):

Width of tyre (mm):

Plate dimensions (mm):

74x74

Distance between holes (mm):

58x58

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

Load:

250

Unit Weight of the wheel (kg):

0,7

Volume (cm³):

614
