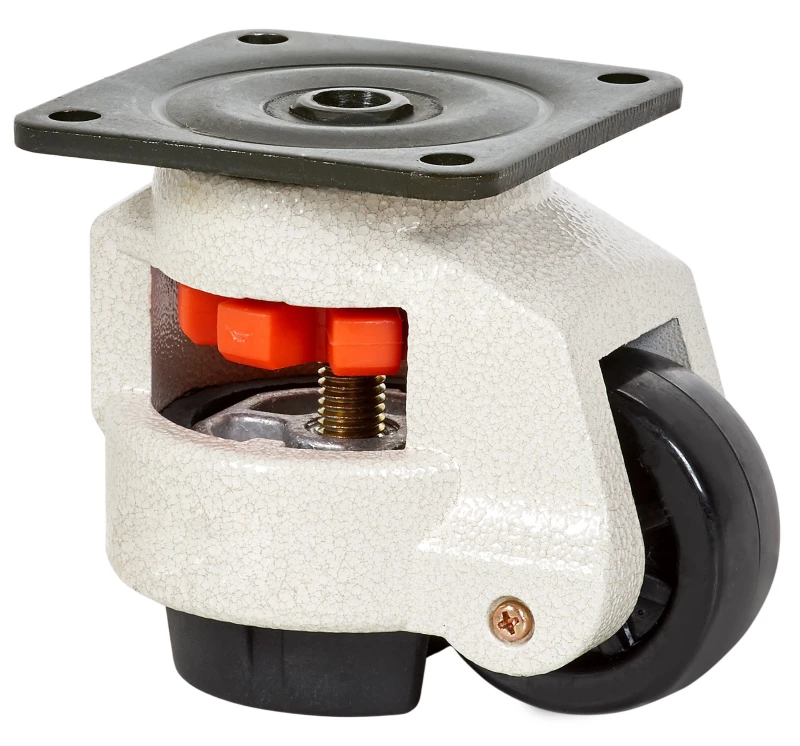

SERIE FM-FM 2-4556

See comparative

Code: 2-4556

Black polyamide wheels. Especially designed to support loads up to 1.500 Kg.

Adjustment range 15 mm.

Used in industries and especially designed for heavy machinery which is moved for short distances.

Good floor protection. Easy rolling.

Components

Brackets

Black polyamide wheels. Especially designed to support loads up to 1.500 Kg. Adjustment range 15 mm. Used in industries and especially designed for heavy machinery which is moved for short distances. Good floor protection. Easy rolling.

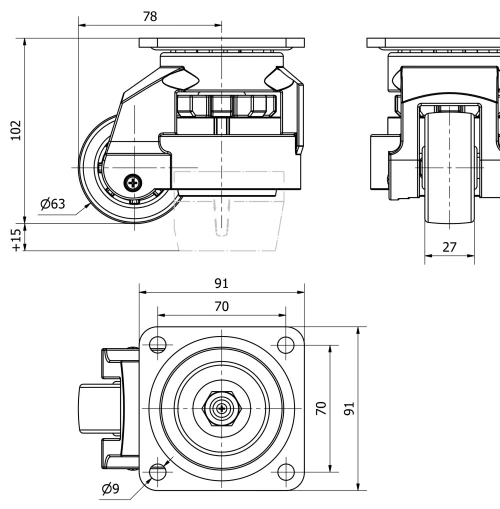

Technical Data 2-4556

EAN:

8422202245560

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Polyamide

Bearing:

Plain

Color:

Black

Diameter (mm):

Width of tyre (mm):

Plate dimensions (mm):

91x91

Distance between holes (mm):

70x70

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

117

Load:

500

Unit Weight of the wheel (kg):

1,3

Volume (cm³):

1,146

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF
