Which castors do you need?

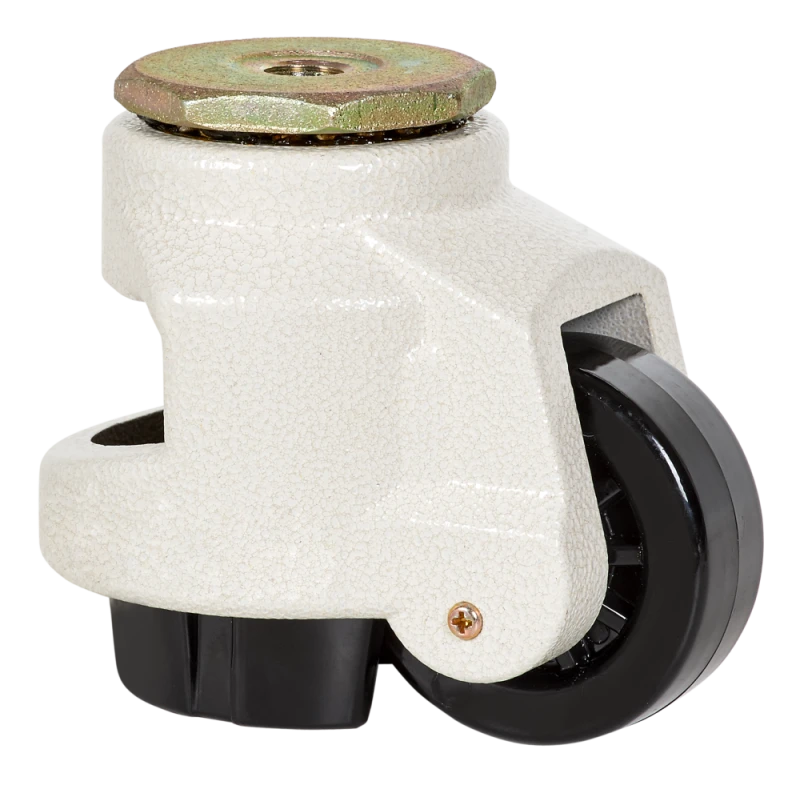

2-4561
EAN 8422202245614
Black polyamide wheels. Especially designed to support loads up to 1.500 Kg.
Adjustment range 15 mm.
Used in industries and especially designed for heavy machinery which is moved for short distances.
Good floor protection. Easy rolling.

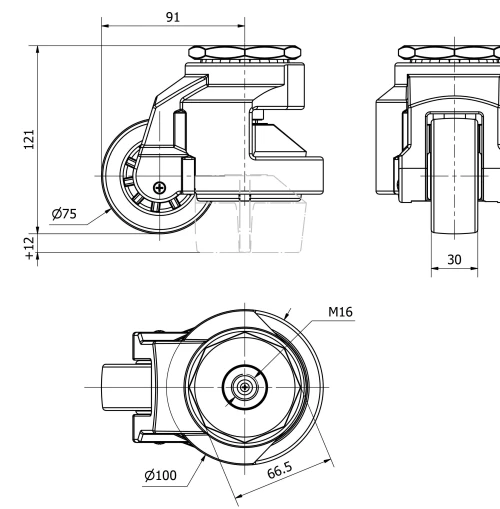

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Bolt hole |
Braking System | Without Brake |
Material | Polyamide |
Bearing | Plain |
Color | Black |
Diameter (mm) | 75 |
Width of tyre (mm) | 30 |
Plate hole diameter (mm) | 16 |
Offset (mm) | 91 |
Overall height (mm) | 133 |
Load | 1000 |
Unit Weight of the wheel (kg) | 1800 |
Volume (cm3) | 1.706 |
