TVA SERIES-TN 2-2495

Code: 2-2495

White nylon castors, especially indicated to support high-loads up to 650 Kg.

It is used in: the industrial sector, materials handling in factories, metallurgical industry, public services, aeronautic sector, railway, construction, scaffolding, mobile ladders, mobile cranes, elevating platforms and mobile platforms.

Suitable for all kind of indoor or outdoor flooring surfaces.

TN: robust and resistant. Undeformable, easy to move with high-loads.

Components

Brackets

Made of pressed steel up to 4 mm.Finish: passivated zinc.Adjustable total brake.High load capacity.Recommended for scaff olding up to 4 metres and stable floors.Manufactured to European standard EN 12532.

Wheel

White nylon ( Polyamide 6) wheel

Temperature range: -30º ÷ +80º

Rolling Resistence Excelent

Noise during the march Reasonable

Floor Protection Reasonable

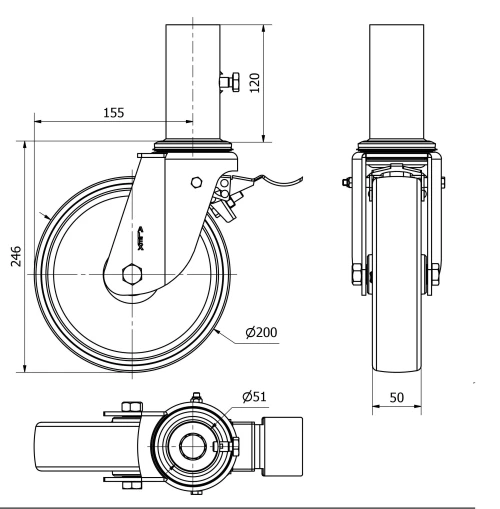

Technical Data 2-2495

EAN:

8422202224954

Housing Type:

Swivel

Fitting Type:

Stem

Braking System:

Wheel Brake And Fork

Material:

Nylon(Polyamide 6)

Bearing:

Plain

Diameter (mm):

200

Width of tyre (mm):

Width x height of stem:

51x120

Offset (mm):

155

Overall height (mm):

246

Load:

650

Unit Weight of the wheel (kg):

3,42

Volume (cm³):

3411

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products

2-2494
