123 SERIES-123 TW0259
EAN 8422202002590

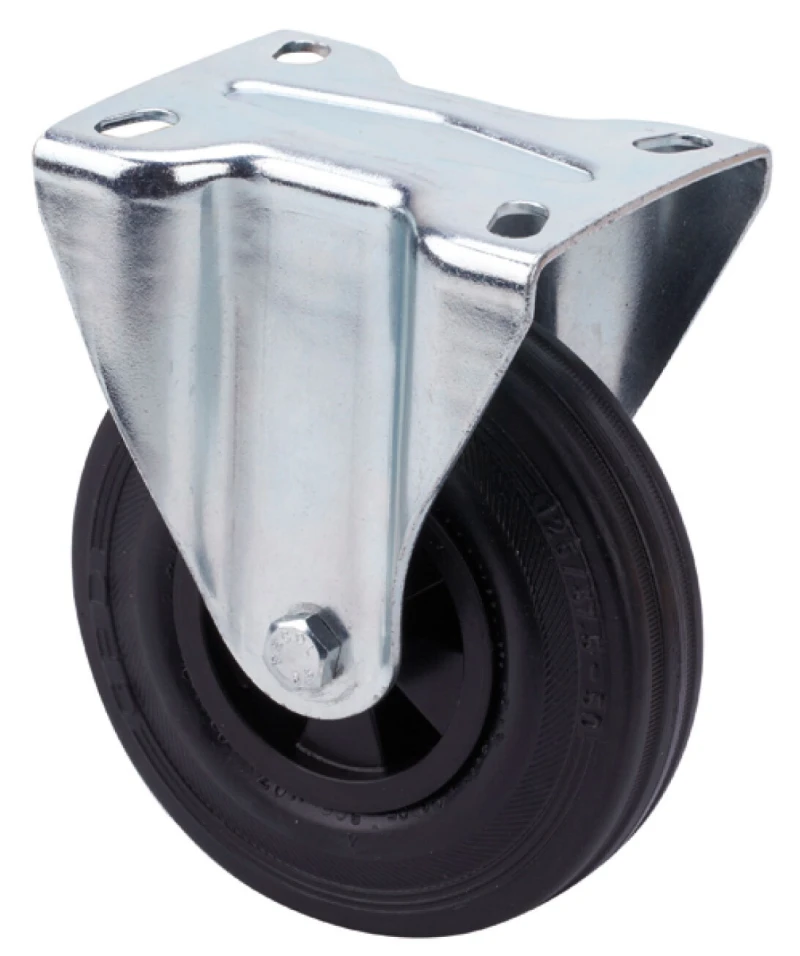

Black rubber castors. Especially indicated to support high-loads up to 200 Kg.
It is used in: tool trolleys, tubular carts, internal logistics, mobile platforms, transport tools, elevating platforms, repair shops, food trolleys, kitchens, canteens, dining rooms, restaurants, food industry, logistics for military missions material, compressors, ladders, sweeping machines, polishing machines, welding, cement mixers, cranes, packaging machines, conveyor belts, mobile cranes, trailers, light machinery, cabinetmaker's, locksmith's, metalworks, agricultural farms, waste containers, containers, roll containers and transport cages.
TWIN-LEX 123: smooth and noiseless castor. High floor protection. Absorption to impacts and vibrations.

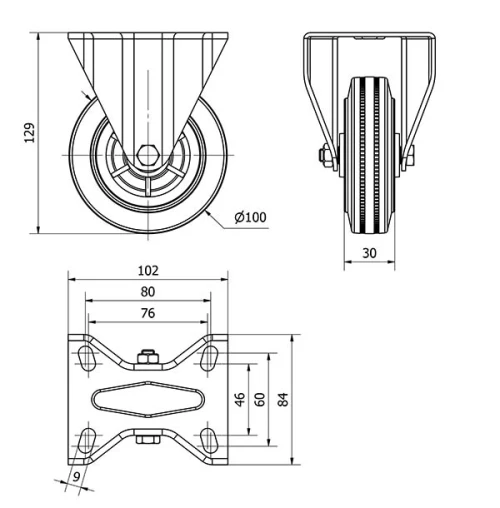

Technical Data
Housing Type | Fixed |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Bearing | Plain |
Diameter (mm) | 100 |
Width of tyre (mm) | 30 |
Plate dimensions (mm) | 100x84 |
Distance between holes (mm) | 80x60/72x52 |
Plate hole diameter (mm) | 8 |
Overall height (mm) | 128 |
Load | 80 |
Unit Weight of the wheel (kg) | 0.655 |
Volume (cm3) | 1092 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Manufactured with steel plate up to 4mmGlossy zinc platingDouble ball bearingUniversal model for medium duty loads
