123 SERIES-123 TW0264

Code: TW0264

Black rubber castors. Especially indicated to support high-loads up to 200 Kg.

It is used in: tool trolleys, tubular carts, internal logistics, mobile platforms, transport tools, elevating platforms, repair shops, food trolleys, kitchens, canteens, dining rooms, restaurants, food industry, logistics for military missions material, compressors, ladders, sweeping machines, polishing machines, welding, cement mixers, cranes, packaging machines, conveyor belts, mobile cranes, trailers, light machinery, cabinetmaker's, locksmith's, metalworks, agricultural farms, waste containers, containers, roll containers and transport cages.

TWIN-LEX 123: smooth and noiseless castor. High floor protection. Absorption to impacts and vibrations.

Components

Brackets

Manufactured with steel plate up to 4mmGlossy zinc platingDouble ball bearingUniversal model for medium duty loads

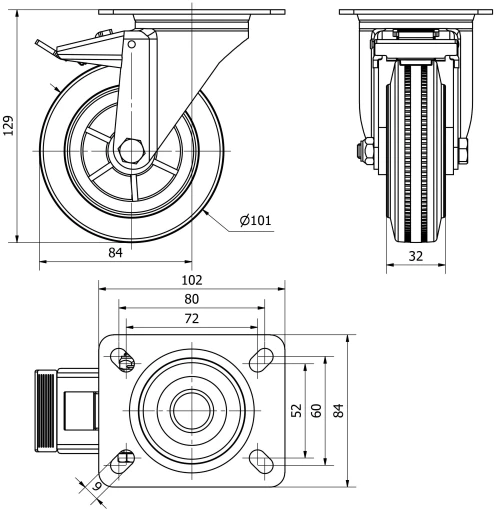

Technical Data TW0264

EAN:

8422202002644

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake And Fork

Bearing:

Plain

Diameter (mm):

100

Width of tyre (mm):

Plate dimensions (mm):

102x84

Distance between holes (mm):

80x60/72x52

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

128

Load:

Unit Weight of the wheel (kg):

0,84

Volume (cm³):

1463,28

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF
