124 SERIES-124 TW0224

Code: TW0224

Grey injected rubber castors with polypropylene centre. Especially indicated to support high-loads up to 110 Kg.

It is used in: logistics transport tools, food trolleys, kitchens, canteens, food industry, supermarkets, light machinery, paper containers, transport cages and roll containers.

Mainly used in the industrial sectors, food industry and construction machinery.

Suitable for mechanical engineering projects by draftsmen and project executors.

TWIN-LEX 124: does not leave marks on floor. Easy to move with load.

Components

Brackets

Manufactured with steel plate up to 4mmGlossy zinc platingDouble ball bearingUniversal model for medium duty loads

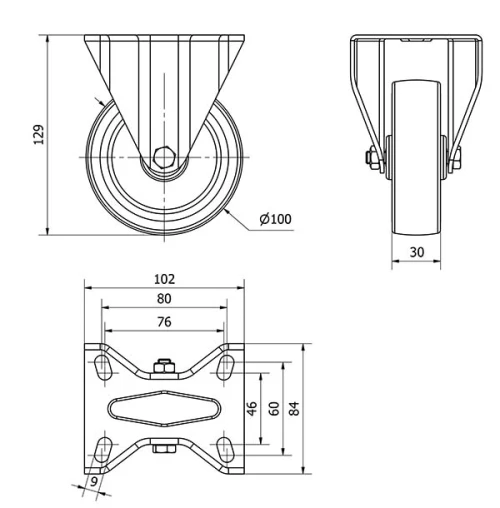

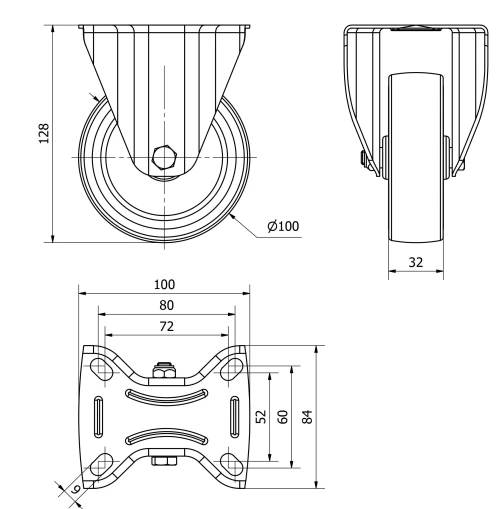

Technical Data TW0224

EAN:

8422202002248

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Bearing:

Plain

Diameter (mm):

100

Width of tyre (mm):

Plate dimensions (mm):

100x84

Distance between holes (mm):

80x60/72x52

Plate hole diameter (mm):

Overall height (mm):

128

Load:

Unit Weight of the wheel (kg):

0,43

Volume (cm³):

1092
