Which castors do you need?

SERIE 124-124

Categories

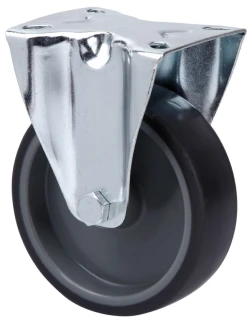

Grey injected rubber castors with polypropylene centre. Especially indicated to support high-loads up to 110 Kg.

It is used in: logistics transport tools, food trolleys, kitchens, canteens, food industry, supermarkets, light machinery, paper containers, transport cages and roll containers.

Mainly used in the industrial sectors, food industry and construction machinery.

Suitable for mechanical engineering projects by draftsmen and project executors.

TWIN-LEX 124: does not leave marks on floor. Easy to move with load.

See comparative

124 SERIES-124

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
TW0220 80 80 32 Bearing: Plain 102x84 80x60/72x52 8 105 74
TW0221 100 90 32 Bearing: Plain 102x84 80x60/72x52 8 128 83
TW0222 125 110 40 Bearing: Plain 102x80 80x60/72x52 8 155 93
TW0302 160 130 40 Bearing: Plain 135x114 108x85/102x75 10 197 124
TW0305 200 140 50 Bearing: Plain 135x114 108x85/102x75 10 238 142

124 SERIES-124

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
TW0223 80 80 32 Bearing: Plain 100x84 80x60/72x52 8 105 --
TW0224 100 90 32 Bearing: Plain 100x84 80x60/72x52 8 128 --
TW0225 125 110 40 Bearing: Plain 100x84 80x60/72x52 8 155 --
TW0303 160 130 40 Bearing: Plain 135x114 108x85/102x75 10 197 --
TW0306 200 140 50 Bearing: Plain 135x114 108x85/102x75 10 238 --

124 SERIES-124

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
TW0226 80 80 32 Bearing: Plain 102x84 80x60/72x52 8 105 74
TW0227 100 90 32 Bearing: Plain 102x84 80x60/72x52 8 128 83
TW0228 125 110 40 Bearing: Plain 102x80 80x60/72x52 8 155 93
TW0304 160 130 40 Bearing: Plain 135x114 108x85/102x75 10 197 124
TW0307 200 140 50 Bearing: Plain 135x114 108x85/102x75 10 238 142
