124 SERIES-124 TW0226

Code: TW0226

Grey injected rubber castors with polypropylene centre. Especially indicated to support high-loads up to 110 Kg.

It is used in: logistics transport tools, food trolleys, kitchens, canteens, food industry, supermarkets, light machinery, paper containers, transport cages and roll containers.

Mainly used in the industrial sectors, food industry and construction machinery.

Suitable for mechanical engineering projects by draftsmen and project executors.

TWIN-LEX 124: does not leave marks on floor. Easy to move with load.

Components

Brackets

Manufactured with steel plate up to 4mmGlossy zinc platingDouble ball bearingUniversal model for medium duty loads

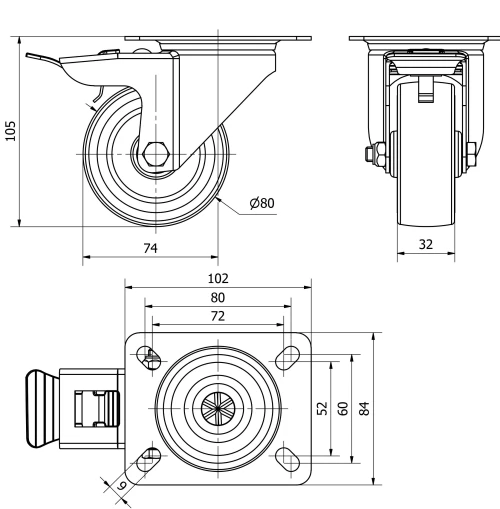

Technical Data TW0226

EAN:

8422202002262

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake And Fork

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

Plate dimensions (mm):

102x84

Distance between holes (mm):

80x60/72x52

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

105

Load:

Unit Weight of the wheel (kg):

0,605

Volume (cm³):

1134

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF
