124 SERIES-124 TW0223
EAN 8422202002231

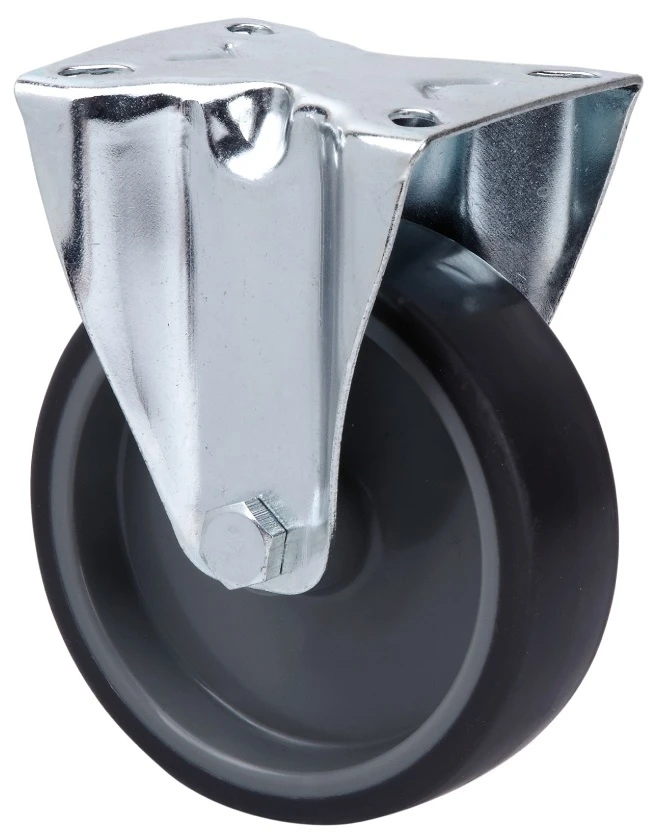

Grey injected rubber castors with polypropylene centre. Especially indicated to support high-loads up to 110 Kg.
It is used in: logistics transport tools, food trolleys, kitchens, canteens, food industry, supermarkets, light machinery, paper containers, transport cages and roll containers.
Mainly used in the industrial sectors, food industry and construction machinery.
Suitable for mechanical engineering projects by draftsmen and project executors.
TWIN-LEX 124: does not leave marks on floor. Easy to move with load.

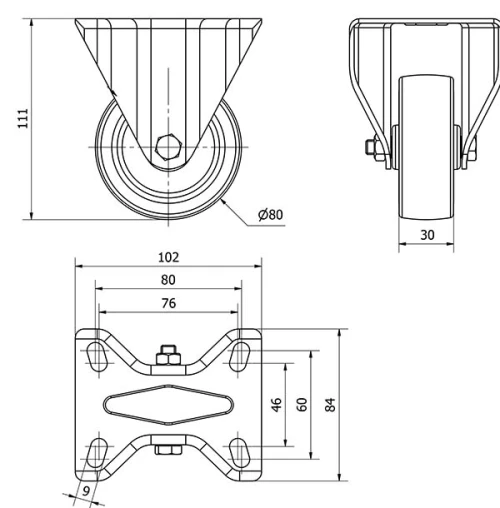

Technical Data
Housing Type | Fixed |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Bearing | Plain |
Diameter (mm) | 80 |
Width of tyre (mm) | 32 |
Plate dimensions (mm) | 100x84 |
Distance between holes (mm) | 80x60/72x52 |
Plate hole diameter (mm) | 8 |
Overall height (mm) | 105 |
Load | 80 |
Unit Weight of the wheel (kg) | 0.34 |
Volume (cm3) | 907.2 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Manufactured with steel plate up to 4mmGlossy zinc platingDouble ball bearingUniversal model for medium duty loads
