Code: TW0130

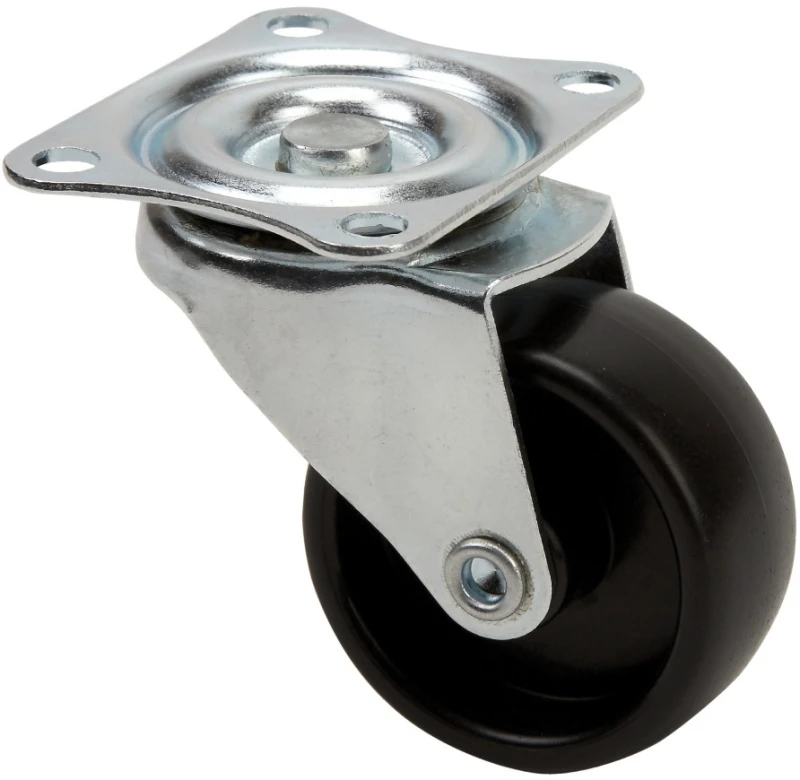

Polypropylene castors especially indicated to support high-loads up to 30 Kg.

It is used in: display stands, furniture, clothes racks, display cabinets and displays.

TWIN-LEX 415: undeformable. Easy to move.

Components

Brackets

Pressed steel bracket.Finish: glossy zinc plating.Fitting: plate.Wheel Bearings: Plain bearing.A single row of balls.

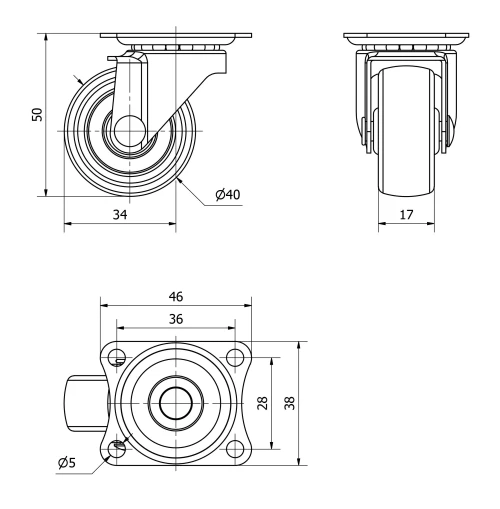

Technical Data TW0130

EAN:
8422202001302
Housing Type:
Swivel
Fitting Type:
Plate
Braking System:
Without Brake
Material:
Plastic Polypropylene
Bearing:
Plain
Diameter (mm):
40
Width of tyre (mm):
17
Plate dimensions (mm):
46x38
Distance between holes (mm):
36x28
Plate hole diameter (mm):
5
Offset (mm):
34
Overall height (mm):
50
Load:
20
Unit Weight of the wheel (kg):
0,06
Volume (cm3):
108,3
Technical Data TW0130
