Code: TW0134

Polypropylene castors especially indicated to support high-loads up to 30 Kg.

It is used in: display stands, furniture, clothes racks, display cabinets and displays.

TWIN-LEX 415: undeformable. Easy to move.

Components

Brackets

Pressed steel bracket.Finish: glossy zinc plating.Fitting: plate.Wheel Bearings: Plain bearing.A single row of balls.

Technical Data TW0134

EAN:
8422202001340
Housing Type:
Fixed
Fitting Type:
Plate
Braking System:
Without Brake
Material:
Plastic Polypropylene
Bearing:
Plain
Diameter (mm):
40
Width of tyre (mm):
17
Plate dimensions (mm):
46x24
Distance between holes (mm):
36x15
Plate hole diameter (mm):
5
Overall height (mm):
50
Load:
20
Unit Weight of the wheel (kg):
0,039
Volume (cm3):
55,2

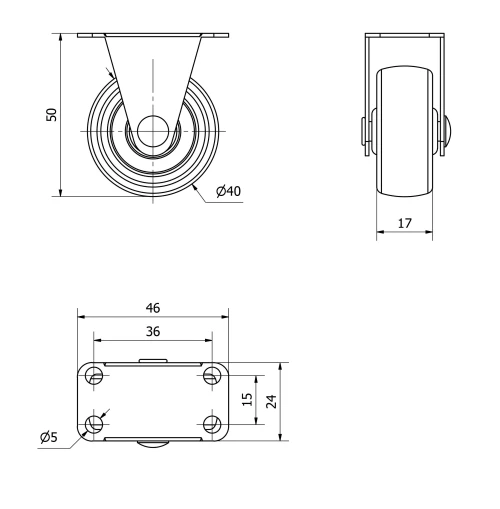

Technical Data TW0134
