Which castors do you need?
2-3991
EAN 8422202239910
Castors with aluminum centre and cast polyurethane tyre with a hardness of 95º Shore A, with a ball-shaped tread tyre, especially indicated to support high-loads up to 750 Kg. It is used in: logistics transport tools, repair shops, internal logistics, food industry, logistics for military missions material, heavy machinery and containers. Mainly used in the industrial sector, aeronautic sector and automobile factories. Suitable for mechanical engineering projects by craftsmen and project executors.
AUAB: Easy to use. Ball-shaped. High absorption to impacts. Unfavourable flooring surfaces conditions. Rough surfaces, broken, with metallic shavings, oil stains, broken glass, grease and gravel.
Low turning resistance and easier rolling.

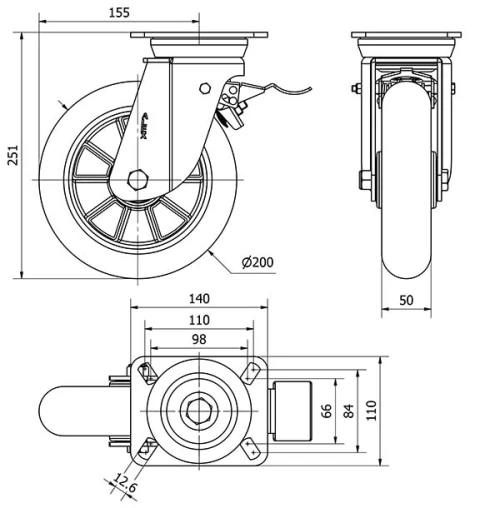

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Wheel Brake And Fork |
Material | Polyurethane |
Hardness of tread | 95º SHORE A |
Bearing | Ball |
Diameter (mm) | 200 |
Width of tyre (mm) | 50 |
Plate dimensions (mm) | 139x110 |
Distance between holes (mm) | 105x80 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 155 |
Overall height (mm) | 251 |
Load | 750 |
Unit Weight of the wheel (kg) | 4.04 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
-
Rolling Resistence Excelent
-
Noise during the march Good
-
Floor Protection Good
